阿普奇 TPP-101CQEA | 超薄高清/工業手持平板/Intel Alder Lake CPU
遠程管理
狀態監控
遠程運維
安全控制
聯系我們
掃碼即可添加微信，售前客服為您提供咨詢服務
產品描述
阿普奇TPP-101CQEA是一款高性能工業手持平板電腦，配備10.1英寸TFT-LCD顯示屏，分辨率1920×1200，亮度高達700 cd/m2，支持10點投射電容觸摸，覆蓋鋼化玻璃，硬度≥7H。搭載Intel? Core? i5/i7移動處理器，配備16GB DDR4L內存與128GB SSD存儲。接口豐富，包括USB Type-A、Type-C、千兆以太網、RS232、HDMI Mini及SIM卡槽等。具備前置2MP攝像頭、防水揚聲器、G-sensor、Wi-Fi 6、藍牙5.1、4G LTE，支持可選NFC、二維碼掃描及指紋開機登錄。采用熱插拔電池（860mAh+5000mAh），運行Windows 10/11系統，尺寸289.9×196.7×27.4mm，重量1230g，IP65防護，工作溫度-20~60°C，抗振動與跌落，適用于手持及車載場景。
|
Model |
TPP-101CQEA |
|
|
LCD |
Display Size | 10.1" |
|
? |
Display Type | TFT-LCD |
|
? |
Max.Resolution | 1920 x 1200 |
|
? |
Luminance | 700 cd/m2 |
|
? |
Aspect Ratio | 16:10 |
|
Touchscreen |
Touch Type | 10-point PCAP with tempered-glass cover |
|
? |
Material | G+F+F |
|
? |
Input | Finger/Capacitive Touch Pen |
|
? |
Hardness | ≥7H |
|
?Processor System |
CPU | Intel? Core? Alder Lake i5/i7 -U mobile CPU |
|
? |
TDP | 15W |
|
? |
Chipset | SOC |
|
Memory |
Capacity | 16GB, DDR4L |
|
Storage |
Capacity | 128GB, SSD |
|
? |
TF Card | 1 * TF Card slot, Max. 128GB |
|
I/O |
USB | 1 * USB 5Gbps (Type-A)
1 * USB 5Gbps (Type-C) 1 * USB 2.0 (Type-A, Co-lay with QR-code/LAN/COM, Opt.) |
|
? |
Ethernet | 1 * GbE (RJ45, Co-lay with QR-code/USB 2.0/COM, Def.) |
|
? |
COM | 1 * RS232 (DB9/M, Co-lay with QR-code/USB 2.0/LAN, Opt.) |
|
? |
Display | 1 * HDMI (Mini): max resolution up to 4096x2304@60Hz |
|
? |
Audio | 1 * 3.5mm Jack (MIC+Line-out) |
|
? |
SIM Card | 1 * SIM Card slot |
|
? |
POGO PIN | 1 * 12Pin Pogo Pin |
|
? |
Power | 1 * φ5.5mm Power Input Connector (19VDC) |
|
Function |
Camera | 1 * Front 2.0 MP 1 * Rear 8.0 MP |
|
? |
Speaker | 1 * Waterproof loudspeaker?(8Ω/1W) |
|
? |
G-sensor | Support |
|
? |
Wi-Fi | 2.4GHz + 5.8GHz dual-band Wi-Fi 6 |
|
? |
Bluetooth | BT5.1 (BLE) |
|
? |
Mobile Network | 4G LTE |
|
? |
GPS | GPS + Glonass (Opt. BD) |
|
? |
NFC | NXP NFC 13.56MHz (Opt.) |
|
? |
QR Code | Honeywell N3680 (Co-lay LAN/USB 2.0/COM, Opt.) |
|
? |
Fingerprint | Supports Windows Hello login on boot (Def.) |
|
Power Supply |
Power Input Voltage | 19V DC |
|
? |
Connector | 1 * φ5.5mm Power Input Connector |
|
? |
Battery | 7.4V/860mAh + 7.4V/5000mAh (Hot-swap) |
|
OS Support |
Windows | Windows 10/11 |
|
Mechanical |
Usage Mode | Handheld, Vehicle mount (Opt.) |
|
? |

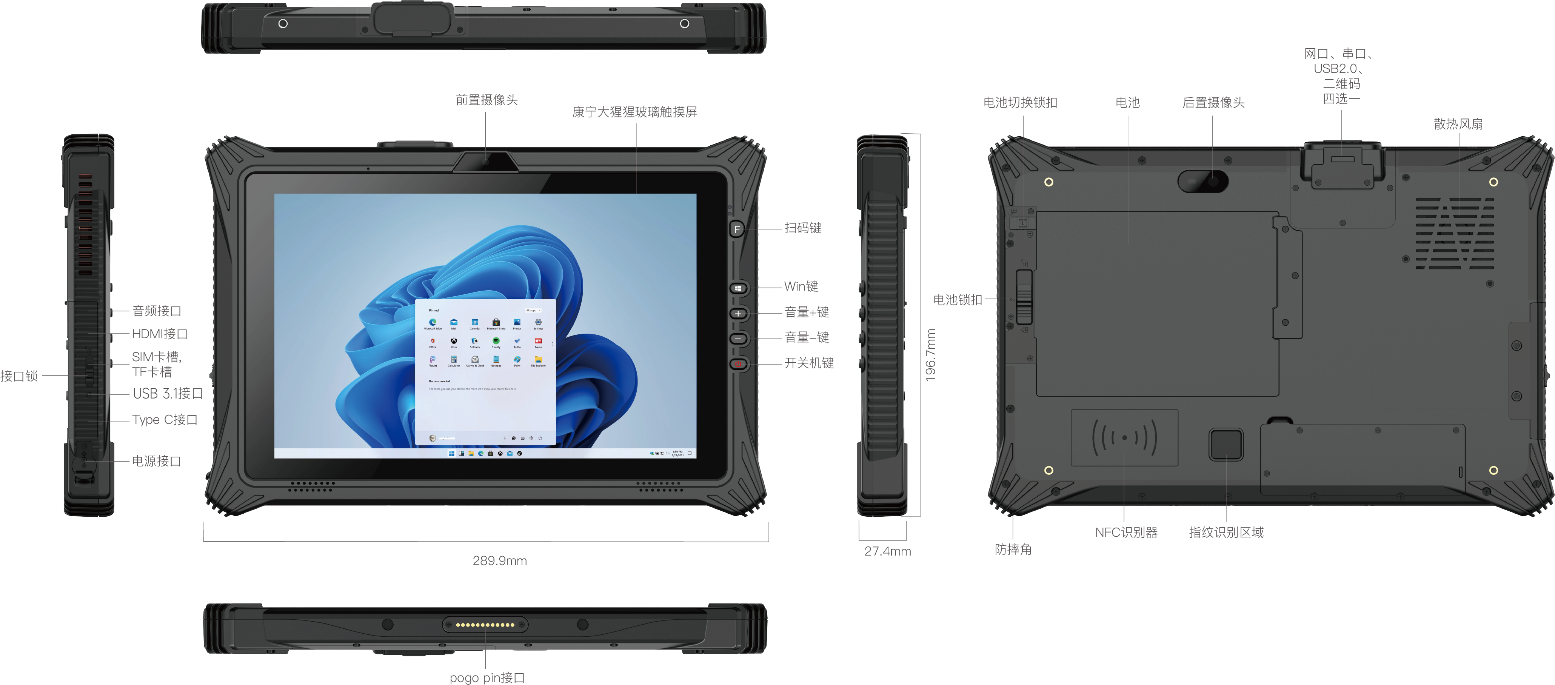

Dimensions | 289.9(L) * 196.7(W) * 27.4(D)mm |
|
? |
Weight | 1230g (Net.) |
|
Environment |
Heat Dissipation System | Fanless passive cooling |
| ? | Operating Temperature | -20~60℃ |
| ? | Storage Temperature | -30~70℃ |
| ? | Vibration During | 1.08Grms@5~500Hz, random, 1hr/axis |
| ? | Functional Drop | 1.22 m free-fall onto 20 mm plywood over concrete, 26 impacts |
| ? | IP Rating | IP65 |
-
