Model |
TER30X-B3 |
|
|
Core Modules |
CPU | Support Intel??12/13th Gen Core i3/i5/i7 -U/P/H, Support max 45W |
|
Memory |
Socket | 1 * Non-ECC SO-DIMM Slot, Up to DDR5 5200 MT/s |
|
? |
Max Capacity | Max. 32GB |
|
Graphics |
Controller | Intel??Iris??Xe Graphics |
|
Ethernet |
Wired Module | 1 * Intel??i219-V (10/100/1000 Mbps) |
|
? |
? | 1 * Intel??i226-V (10/100/1000/2500 Mbps) |
|
? |
? | 1 * Intel??X710-AT2 (100/1000/2500/10000 Mbps) |
|
Storage |
M.2 | 1 * M.2 Key-M Slot (NVMe SSD, 2280) |
|
Expansion Slots |
M.2 | 1 * M.2 Key-B?Slot?(USB 5Gbps +?USB 2.0, 3052, with 1 * Nano?SIM Card?Slot) |
| ? | ? | 1 * M.2 Key-E?Slot (PCIe?x1 +?USB 2.0) |
|

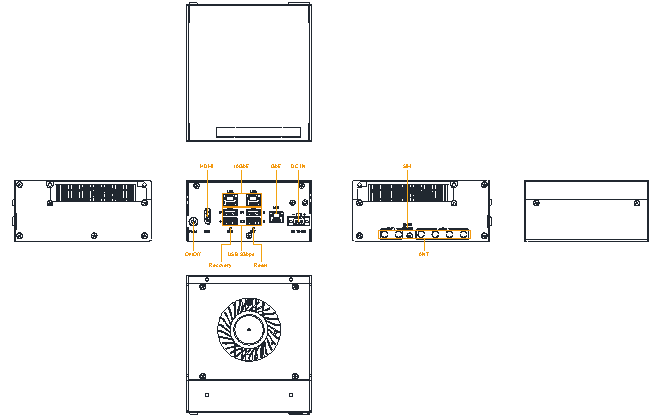

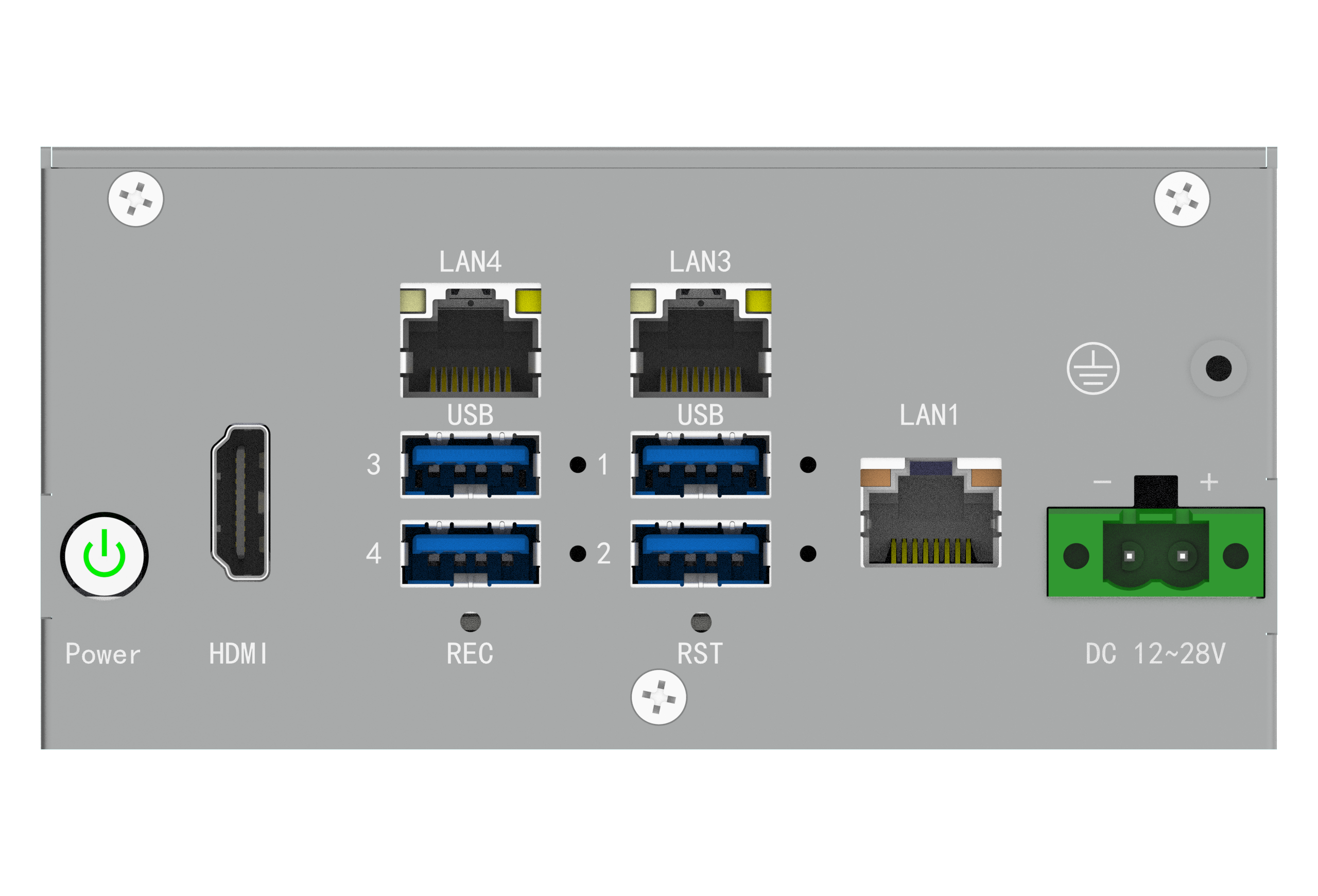

Front I/O |
Ethernet | 2 * 10GbE (RJ45) |
|
? |
? | 1 * GbE (RJ45) |
| ? | USB | 4 * USB 5Gbps (Type-A) |
| ? | Display | 1 * HDMI: Resolution up to 4096*2304@30Hz (Type-A) |
| ? | Button | 1 * Power Button + Power LED |
| ? | ? | 1 * System Reset button |
| ? | ? | 1 * System Recover?button |
| ? | Power Input | 1 * Power Input (2P, P=5.00/5.08, Terminal Block) |
|

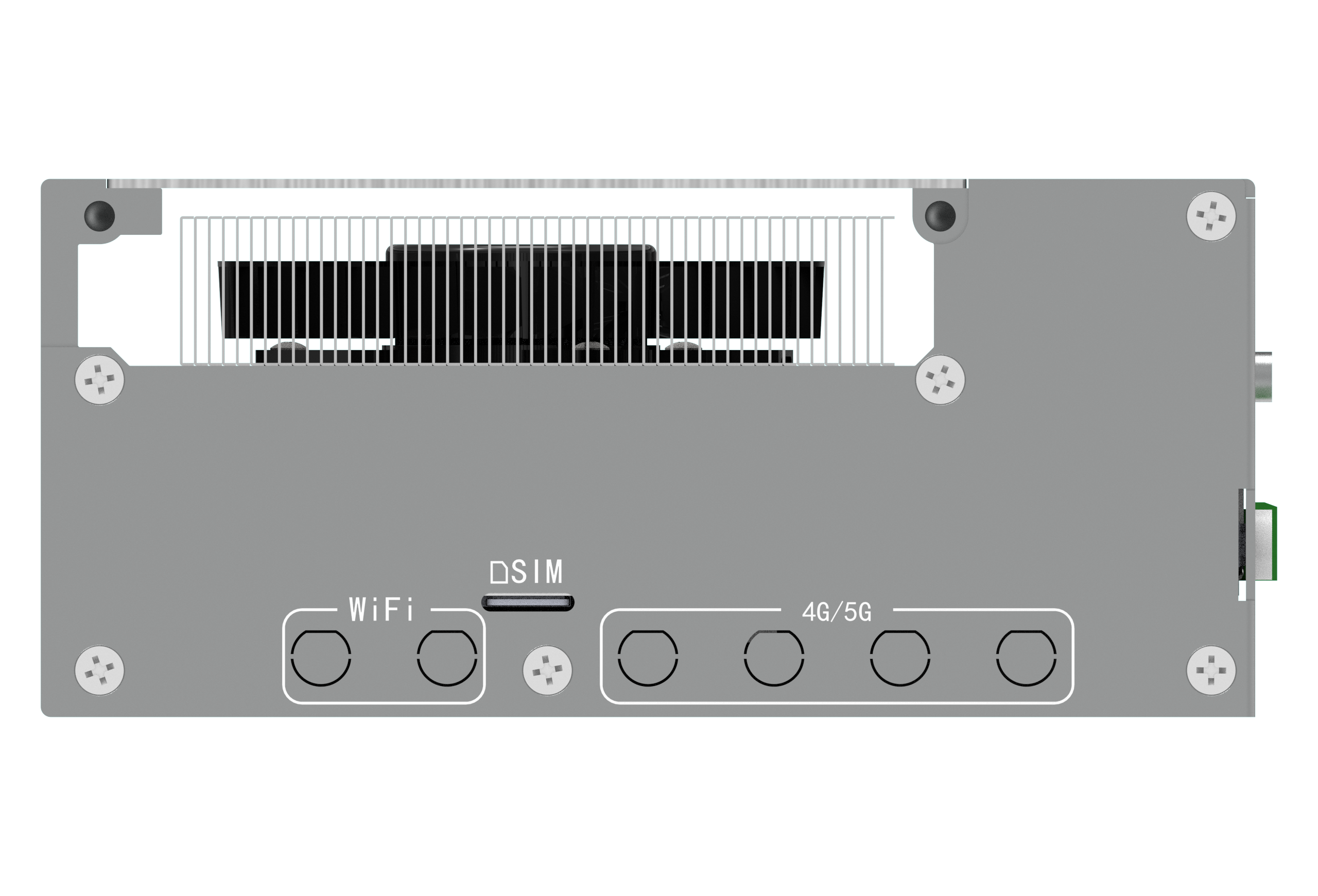

Side I/O |
SIM | 1 * Nano?SIM Card Slots |
|
Internal I/O |
Front Panel | 1 * Front Panel (Power + Reset + Recovery, wafer) |
|
? |
Ethernet | 1 * GbE (wafer) |
| ? | FAN | 1 * System Fan (wafer) |
| ? | GPIO | 8bit?GPIO (OS Configurable DI/DO and H/L, wafer) |
| ? | Serial | 4 * RS232/485 (Jumper Switch, wafer) |
| ? | Audio | 1 * Audio?(Line_Out + Mic) (wafer) |
| ? | USB | 3 * USB 2.0 (wafer) |
|
Power Supply |
Type | AT/ATX |
|
? |
Power Input Voltage | 12 ~ 28V DC |
| ? | Connector | 1 * Power Input Connector (2P, P=5.08mm, Terminal Block) |
| ? | RTC Battery | CR2032 Coin Cell |
|
OS Support |
Linux | Ubuntu22.04 |
|
Mechanical |
Enclosure Material | Aluminum alloy |
|
? |

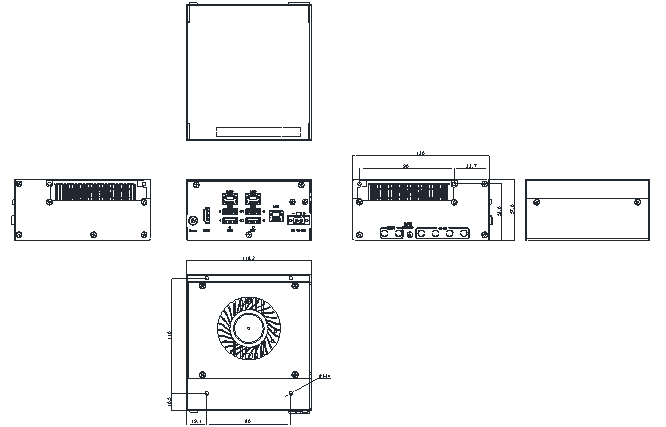

Dimensions | 118.2mm(L) * 130mm(W)?* 57.6mm(H) |
|
? |
Mounting | Bracket Mounting |
|
Environment |

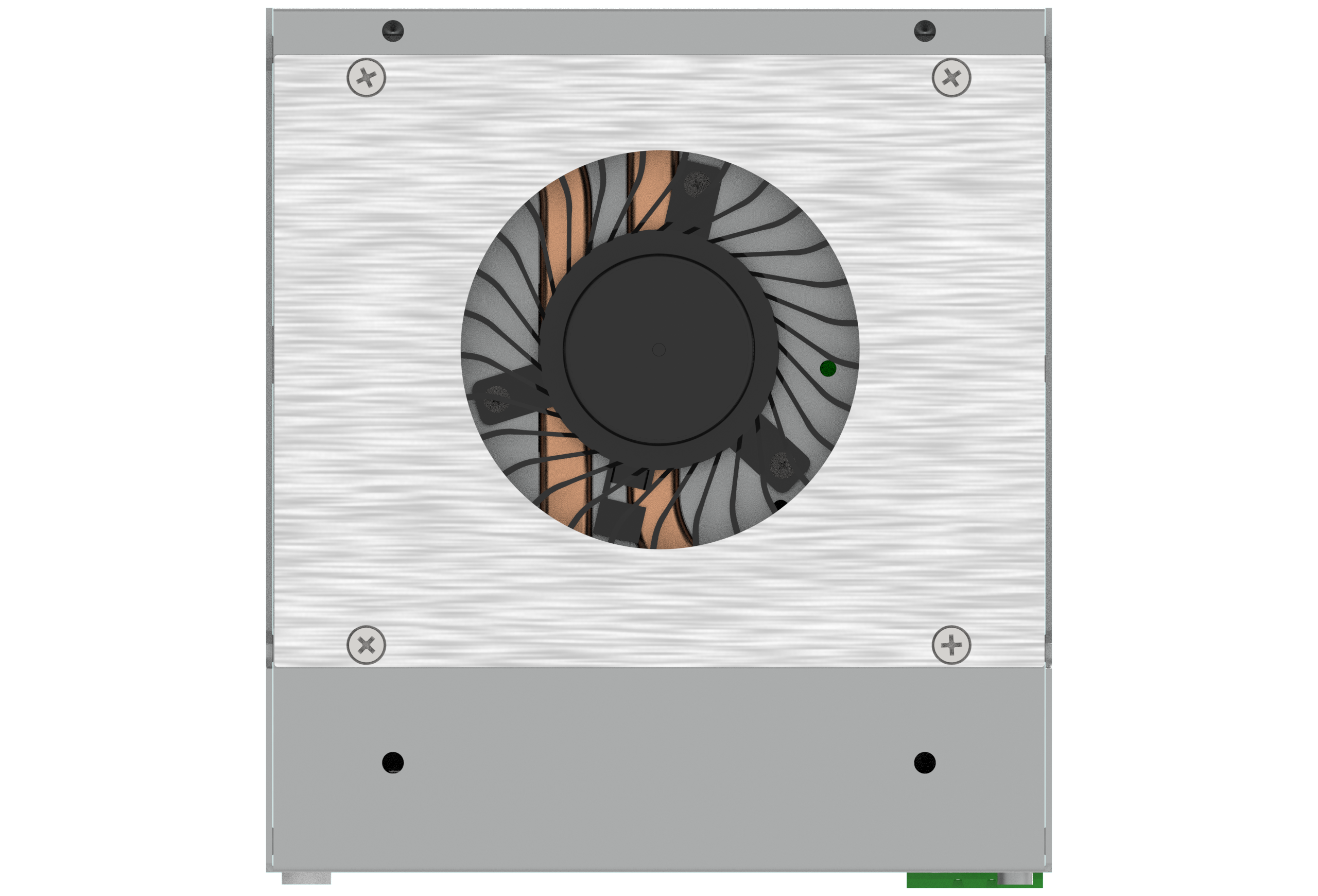

Heat Dissipation System | Active Fan Cooling |
|
? |
Operating Temperature | -20~50℃?(Industrial SSD) |
|
? |
Storage Temperature | -40~80℃?(Industrial SSD) |
|
? |
Relative Humidity | 10 to 95% RH (non-condensing) |
|
? |
Vibration During Operation | 3Grms@5~500Hz, random, 1hr/axis |
|
? |
Shock During Operation | 15G, half sine, 11ms, ±X/Y/Z, 3 shocks/axis |
-
