產品描述

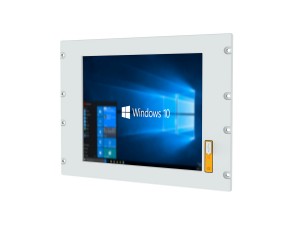

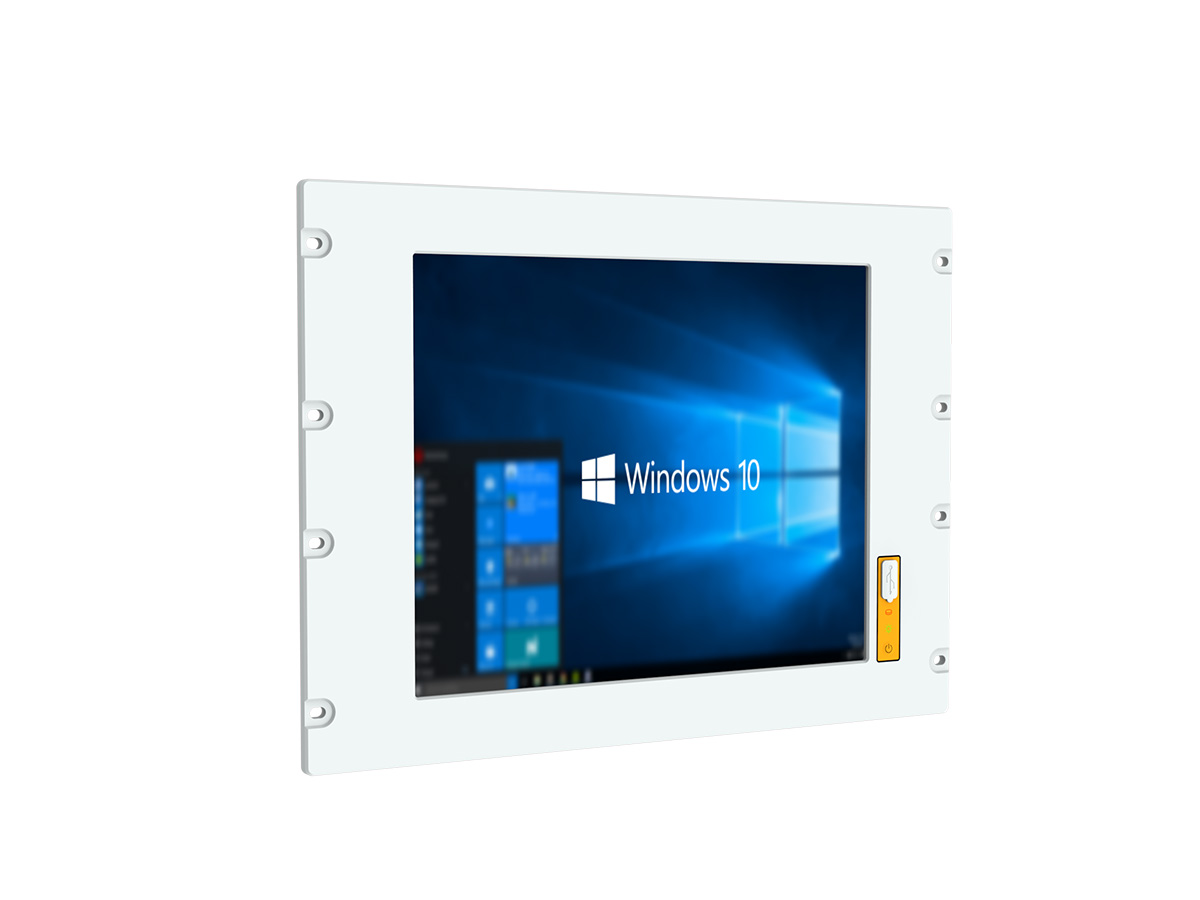

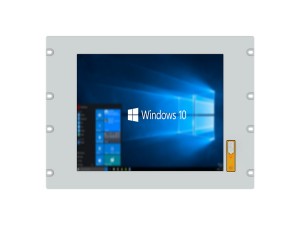

阿普奇電阻觸摸屏工業一體機PGxxxRF-E6系列11th-U平臺結合了先進的技術和創新設計，是您工業自動化需求的理想選擇。這款工業一體機采用電阻觸摸屏設計，支持模塊化17/19英寸可選擇，可支持方屏/寬屏顯示，滿足不同客戶的需求。前面板符合IP65標準，具有良好的防水防塵性能，適用于各種惡劣工業環境。產品采用Intel? 11th-U移動平臺CPU，性能強勁可靠。集成雙Intel?千兆網絡卡，支持雙硬盤存儲，且具有2.5英寸硬盤可拔插設計，方便維護和升級。此外，產品還支持APQ aDoor模塊擴展、WiFi/4G無線擴展，滿足了現代工業互聯網的快速發展需求。除此之外，產品還具有無風扇設計、可拆卸散熱器，有效降低了產品的散熱壓力和噪音，保證設備的穩定運行。支架安裝/VESA安裝方式，可根據實際需要進行安裝，方便快捷。產品支持12~28V DC電源輸入，適用于各種工業場合。
總之，阿普奇阻抗觸摸屏工業一體機PGxxxRF-E6系列11th-U平臺是一款功能強大、穩定可靠的工業自動化設備，是工業自動化領域的理想選擇。
|
Model |
PG170RF-E6 |
PG190RF-E6 |
|
|
LCD |
Display Size | 17.0" | 19.0" |
| Display Type | SXGA TFT-LCD | SXGA TFT-LCD | |
| Max.Resolution | 1280 x 1024 | 1280 x 1024 | |
| Luminance | 250 cd/m2 | 250 cd/m2 | |
| Aspect Ratio | 5:4 | 5:4 | |
| Viewing Angle | 85/85/80/80° | 89/89/89/89° | |
| Max. Color | 16.7M | 16.7M | |
| Backlight Lifetime | 30,000 hr | 30,000 hr | |
| Contrast Ratio | 1000:1 | 1000:1 | |
|
Touchscreen |
Touch Type | 5-Wire Resistive Touch | |
| Controller | USB signal | ||
| Input | Finger/Touch pen | ||
| Light Transmission | ≥78% | ||
| Hardness | ≥3H | ||
| Click lifetime | 100gf, 10 million times | ||
| Stroke lifetime | 100gf, 1 million times | ||
| Response time | ≤15ms | ||
|
Processor System |
CPU | Intel??11th?Generation Core? i3/i5/i7 Mobile -U CPU | |
| Chipset | SOC | ||
| BIOS | AMI EFI BIOS | ||
|
Memory |
Socket | 2 * DDR4-3200 MHz SO-DIMM Slot | |
| Max Capacity | 64GB | ||
|
Graphics |
Controller | Intel? UHD Graphics/Intel??Iris??Xe Graphics (dependent on CPU type) | |
|
Ethernet |
Controller | 1 * Intel??i210AT (10/100/1000/2500 Mbps, RJ45) 1 * Intel??i219 (10/100/1000 Mbps, RJ45) |
|
|
Storage |
SATA | 1 * SATA3.0 Connector | |
| M.2 | 1 * M.2 Key-M (SSD, 2280, NVMe+SATA3.0) | ||
|
Expansion Slots |
aDoor | 2 * aDoor Expansion Slot | |
| aDoor Bus | 1 * aDoor Bus (16*GPIO + 4*PCIe + 1*I2C) | ||
| Mini PCIe | 1 * Mini PCIe Slot (PCIe x1+USB 2.0, with Nano SIM Card) 1 * Mini PCIe Slot (PCIe x1+USB 2.0) |
||
|

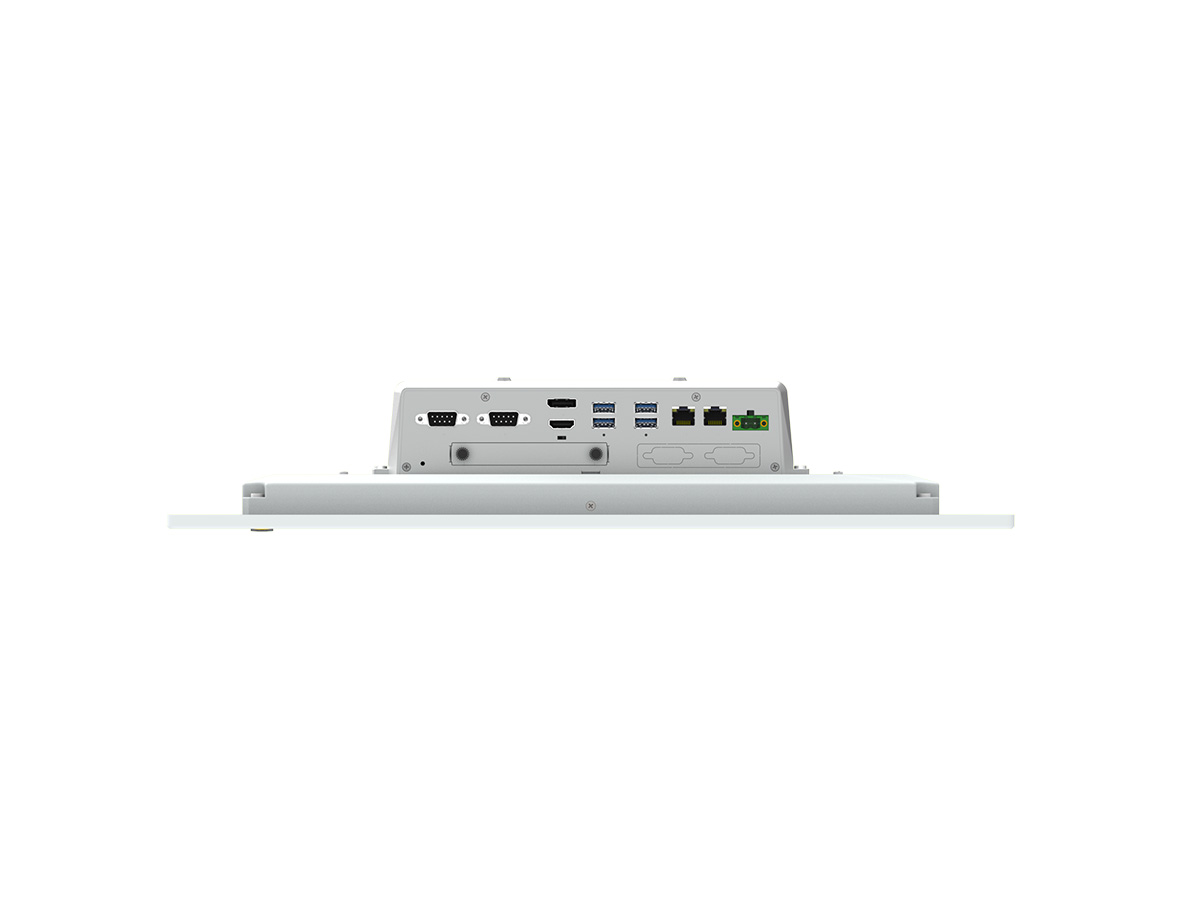

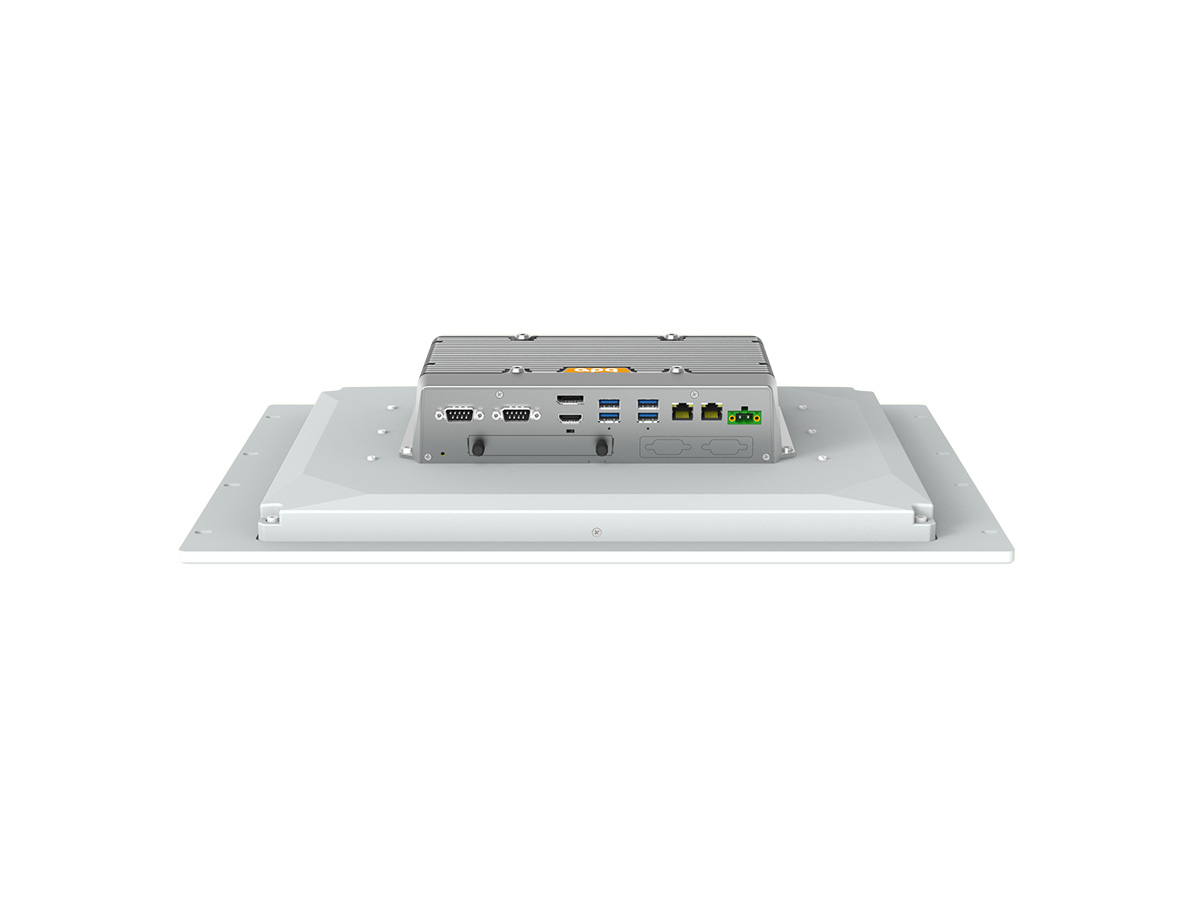

Front I/O |
USB | 2 * USB3.2 Gen2x1 (Type-A) 2 * USB3.2 Gen1x1 (Type-A) |
|
| Ethernet | 2 * RJ45 | ||
| Display | 1 * DP: up to 4096x2304@60Hz 1 * HDMI (Type-A): up to 3840x2160@24Hz |
||
| Serial | 2 * RS232/485 (COM1/2, DB9/M, BIOS control) | ||
| Switch | 1 * AT/ATX Mode Switch (Enable/Disable automatically power on) | ||
| Button | 1 * Reset (hold down 0.2 to 1s to restart, 3s to clear CMOS) 1 * OS Rec (system recovery) |
||
| Power | 1 * Power Input Connector (12~28V) | ||
|

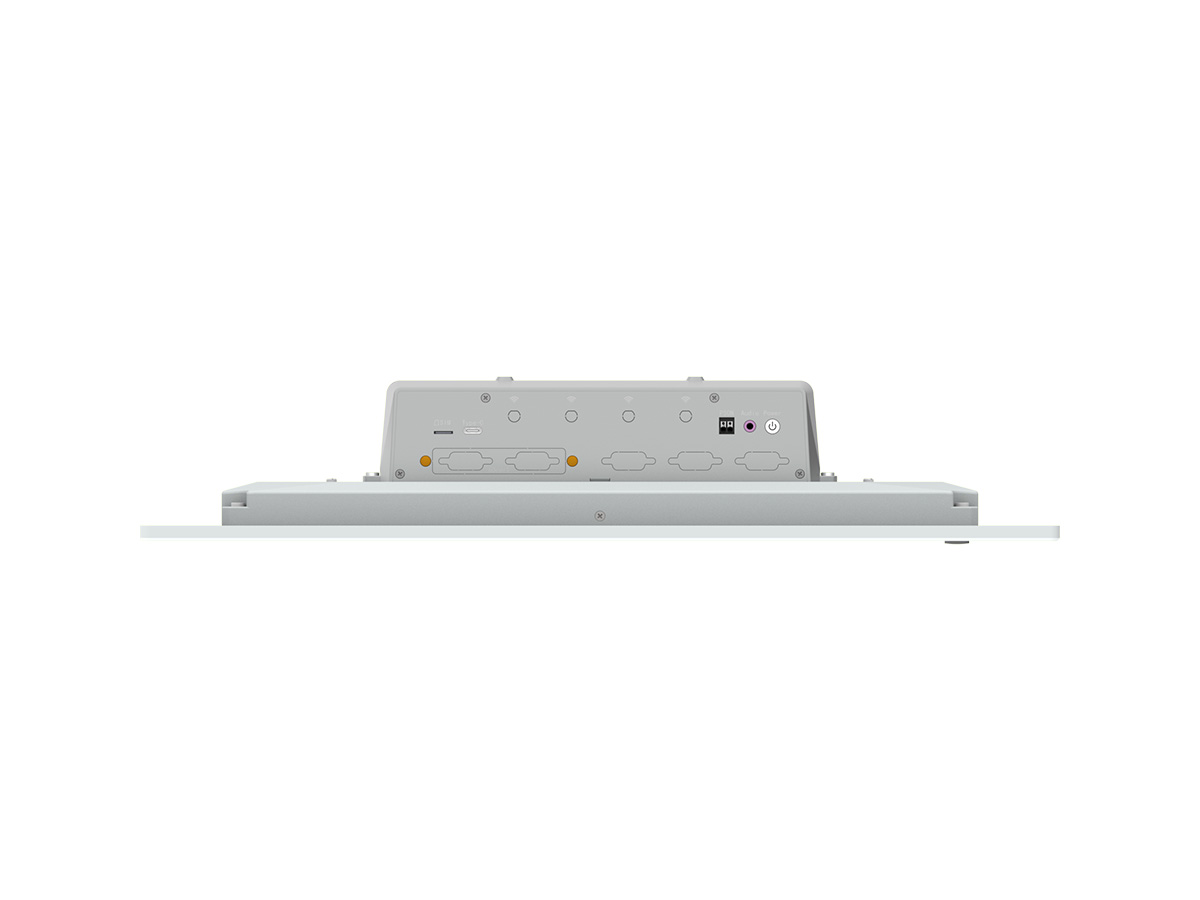

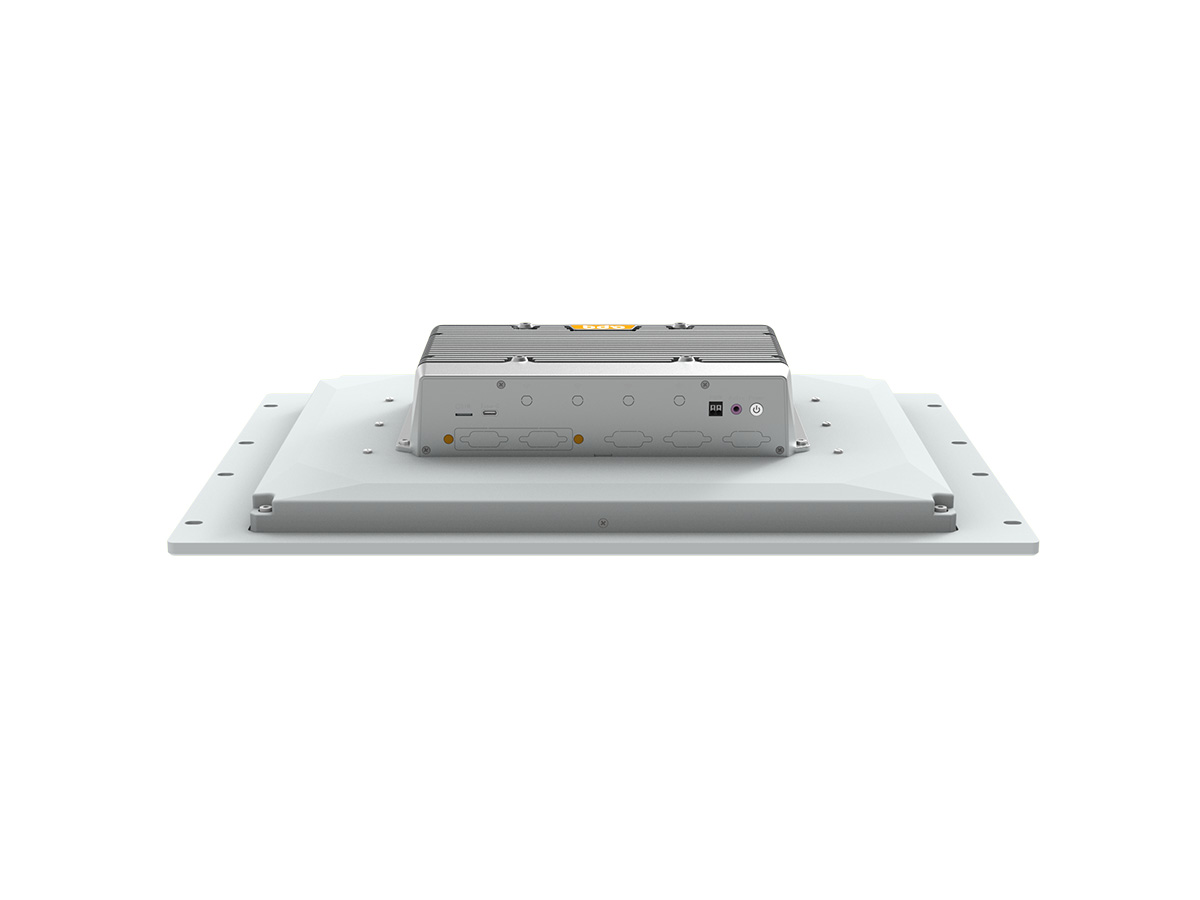

Rear I/O |
SIM | 1 * Nano SIM Card Slot (Mini PCIe module provide functional support) | |
| Button | 1 * Power Button+Power LED 1 * PS_ON |
||
| Audio | 1 * 3.5mm Audio Jack (LineOut+MIC, CTIA) | ||
|
Internal I/O |
Front Panel | 1 * Front Panel (wafer, 3x2Pin, PHD2.0) | |
| FAN | 1 * CPU FAN (4x1Pin, MX1.25) 1 * SYS FAN (4x1Pin, MX1.25) |
||
| Serial | 1 * COM3/4 (5x2Pin, PHD2.0) 1 * COM5/6 (5x2Pin, PHD2.0) |
||
| USB | 4 * USB2.0 (2*5x2Pin, PHD2.0) | ||
| LPC | 1 * LPC (8x2Pin, PHD2.0) | ||
| Storage | 1 * SATA3.0 7Pin Connector 1 * SATA Power |
||
| Audio | 1 * Speaker (2-W (per channel)/8-Ω Loads, 4x1Pin, PH2.0) | ||
| GPIO | 1 * 16bits DIO (8xDI and 8xDO, 10x2 Pin, PHD2.0) | ||
|
Power Supply |
Type | DC | |
| Power Input Voltage | 12~28VDC | ||
| Connector | 1 * 2Pin Power Input Connector (P=5.08mm) | ||
| RTC Battery | CR2032 Coin Cell | ||
|
OS Support |
Windows | Windows 10 | |
| Linux | Linux | ||
|
Watchdog |
Output | System Reset | |
| Interval | Programmable 1 ~ 255 sec | ||
|

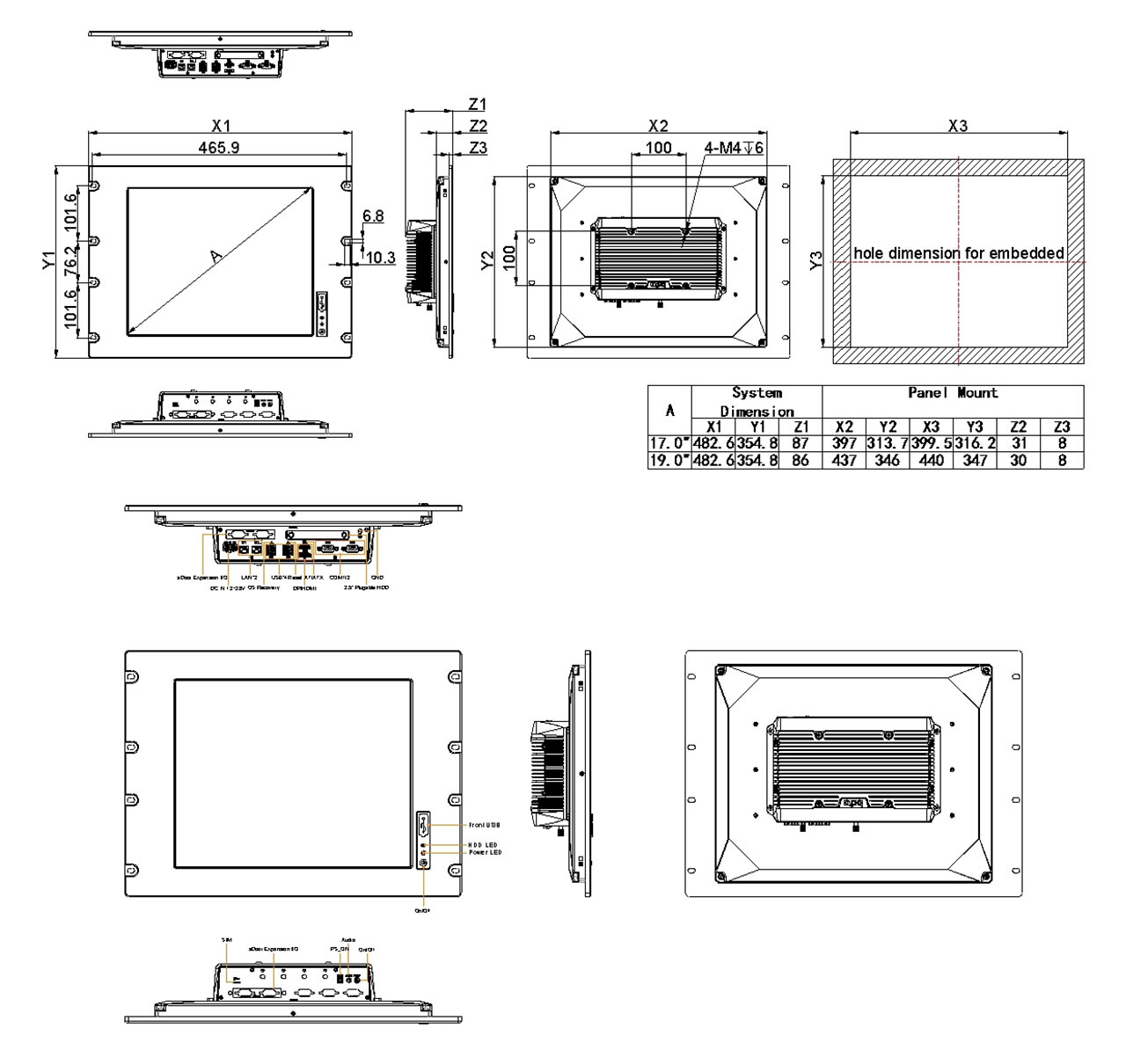

Mechanical |
Enclosure Material | Radiator/Panel: Aluminum, Box/Cover: SGCC | |
| Mounting | Rack-mount, VESA, embedded | ||
| Dimensions | 482.6mm(L) * 354.8mm(W) * 87mm(H) | 482.6mm(L) * 354.8mm(W) * 86mm(H) | |
| Weight | Net: 6.2kg, Total:9.2kg | Net: 7.6kg, Total: 10.9kg | |
|
Environment |

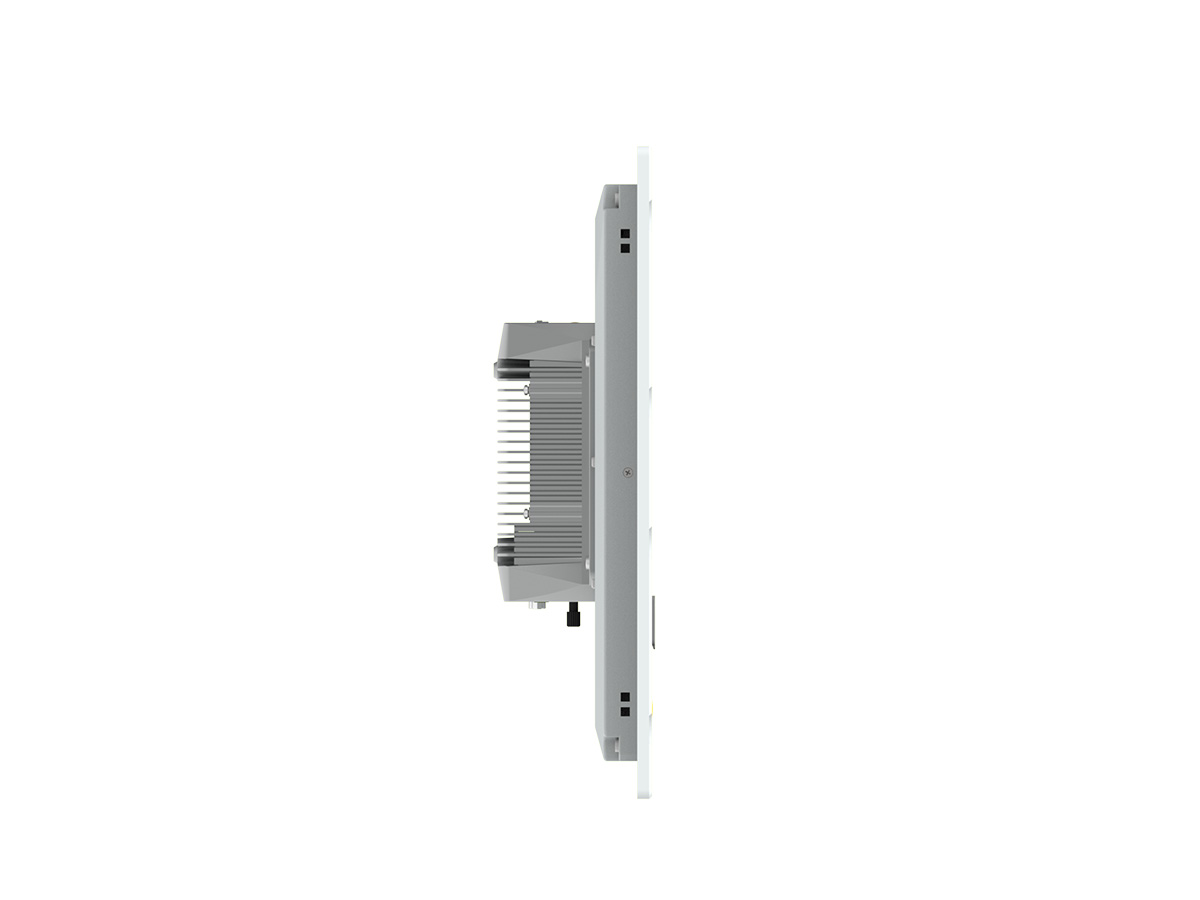

Heat Dissipation System | Passive heat dissipation | |
| Operating Temperature | 0~50℃ | 0~50℃ | |
| Storage Temperature | -20~60℃ | -20~60℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | ||
| Vibration During Operation | With SSD: IEC 60068-2-64 (1Grms@5~500Hz, random, 1hr/axis) | ||
| Shock During Operation | With SSD: IEC 60068-2-27 (15G, half sine, 11ms) | ||
-
