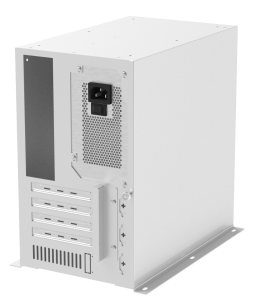

IPC340-H610 工控機 壁掛式工控機
遠程管理
狀態監控
遠程運維
安全控制
聯系我們
掃碼即可添加微信，售前客服為您提供咨詢服務
|
Model |
IPC340-H610 |
|
|
Processor System |
CPU | Support Intel??12~14th Generation Core / Pentium/ Celeron Desktop CPU |
| ? | TDP | 125W |
| ? | Socket | LGA1700 |
| ? | Chipset | H610 |
| ? | BIOS | AMI 256 Mbit SPI |
|
Memory |
Socket | 2?* Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 3200MHz |
| ? | Capacity | 64GB, Single Max. 32GB |
|
Graphics |
Controller | Intel??UHD Graphics |
|
Ethernet |
Controller | 1 * Intel i226-V 2.5GBE LAN Chip (10/100/1000/2500 Mbps, RJ45)
1 * Intel i219-V GBE LAN Chip (10/100/1000 Mbps, RJ45) |
|
Storage |
SATA | 4 * SATA3.0 7P Connector |
| ? | M.2 | 1 * M.2 Key-M Slot (PCIe3.0 x2, NVMe SSD, 2242/2260/2280) |
|
Expansion Slots |
PCIe | 1 * PCIe x16 Slot (Gen4, x16 signal) 1?* PCIe x4 Slot (Gen3, x4 signal) |
| ? | PCI | 2 * PCI Slot |
|

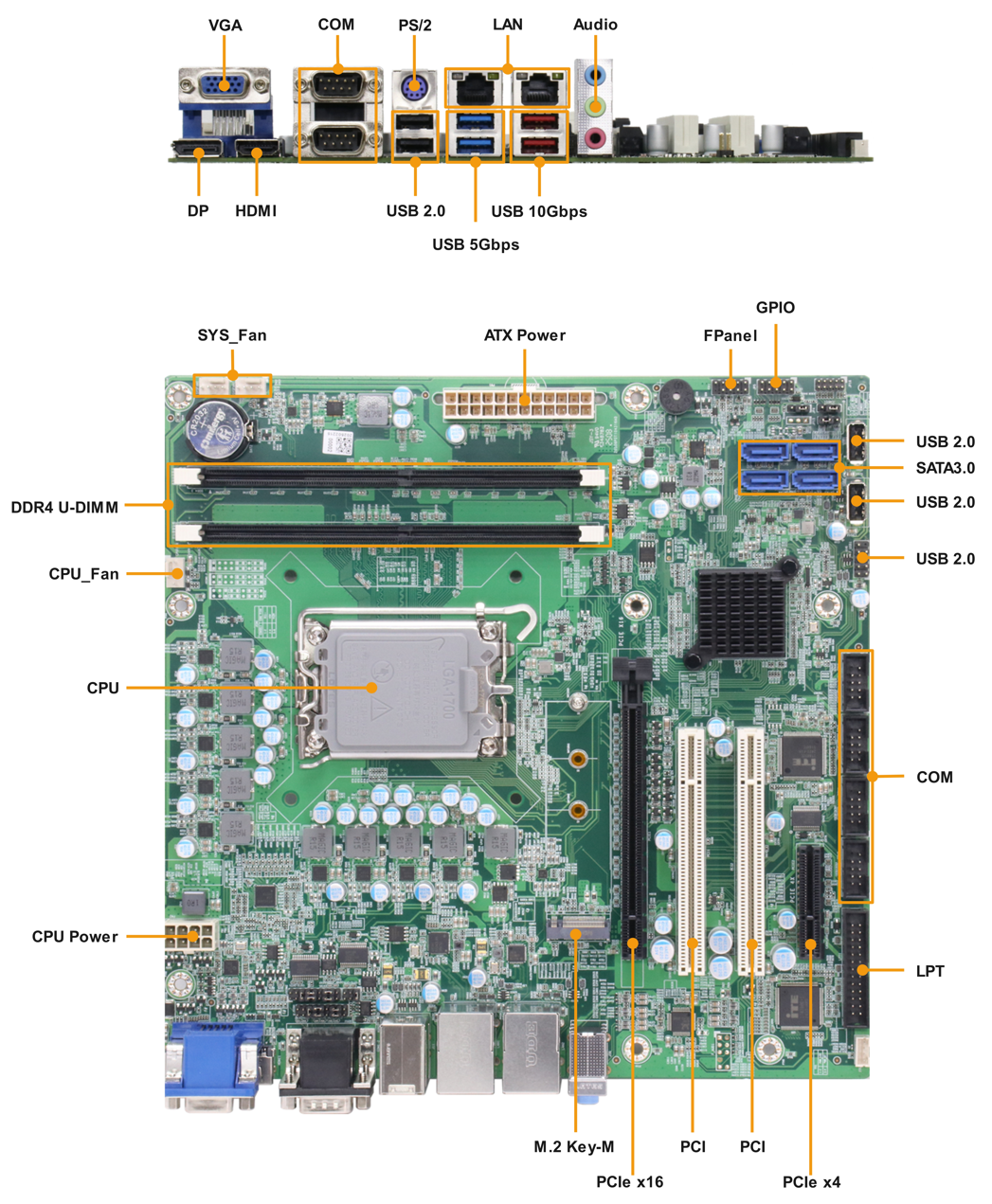

Front I/O |
Ethernet | 2 * RJ45 |
| ? | USB | 2?* USB?10Gbps?(Type-A)
2?* USB?5Gbps?(Type-A) |
| ? | Display | 1 * VGA: max resolution up to 1920*1080@60Hz 1 * HDMI: max resolution up to 4096*2304@30Hz 1 * DP: max resolution up to 4096*2304@30Hz |
| ? | Audio | 3 * 3.5mm Jack (Line-In + Line-Out + MIC) |
| ? | Serial | 2 * RS232/422/485 (COM1/2,?Select by jumper setting, DB9/M) |
| ? | PS/2 | 1 * PS/2 (Keyboard & Mouse) |
|
Rear I/O |
USB | 2 * USB2.0 (Type-A) |
| ? | Button | 1 * Power Button
1 * Reset Button |
| ? | LED | 1 * Power status LED
1 * Hard drive status LED |
|
Internal I/O |
USB | 2 * USB2.0 (Type-A, Vertical) |
| ? | Serial | 4 * RS232 (COM3/4/5/6, Header) |
| ? | LPT | 1?*?LPT?(Header) |
| ? | GPIO | 8bits GPIO?(4in?+ 4out, Header) |
| ? | SATA | 4 * SATA3.0 7P Connector |
| ? | FAN | 1 * CPU FAN (Header) 2 * SYS FAN (Header) |
|
Power Supply |
Type | ATX |
| ? | Power Input Voltage | AC power supply, voltage and frequency shall be based on the ATX power supply provided |
| ? | RTC Battery | CR2032 Coin Cell |
|
OS Support |
Windows | Windows 10/11 |
|
? |
Linux | Linux |
|
Watchdog |
Output | System Reset |
| ? | Interval | Programmable 1 ~ 255 sec |
|

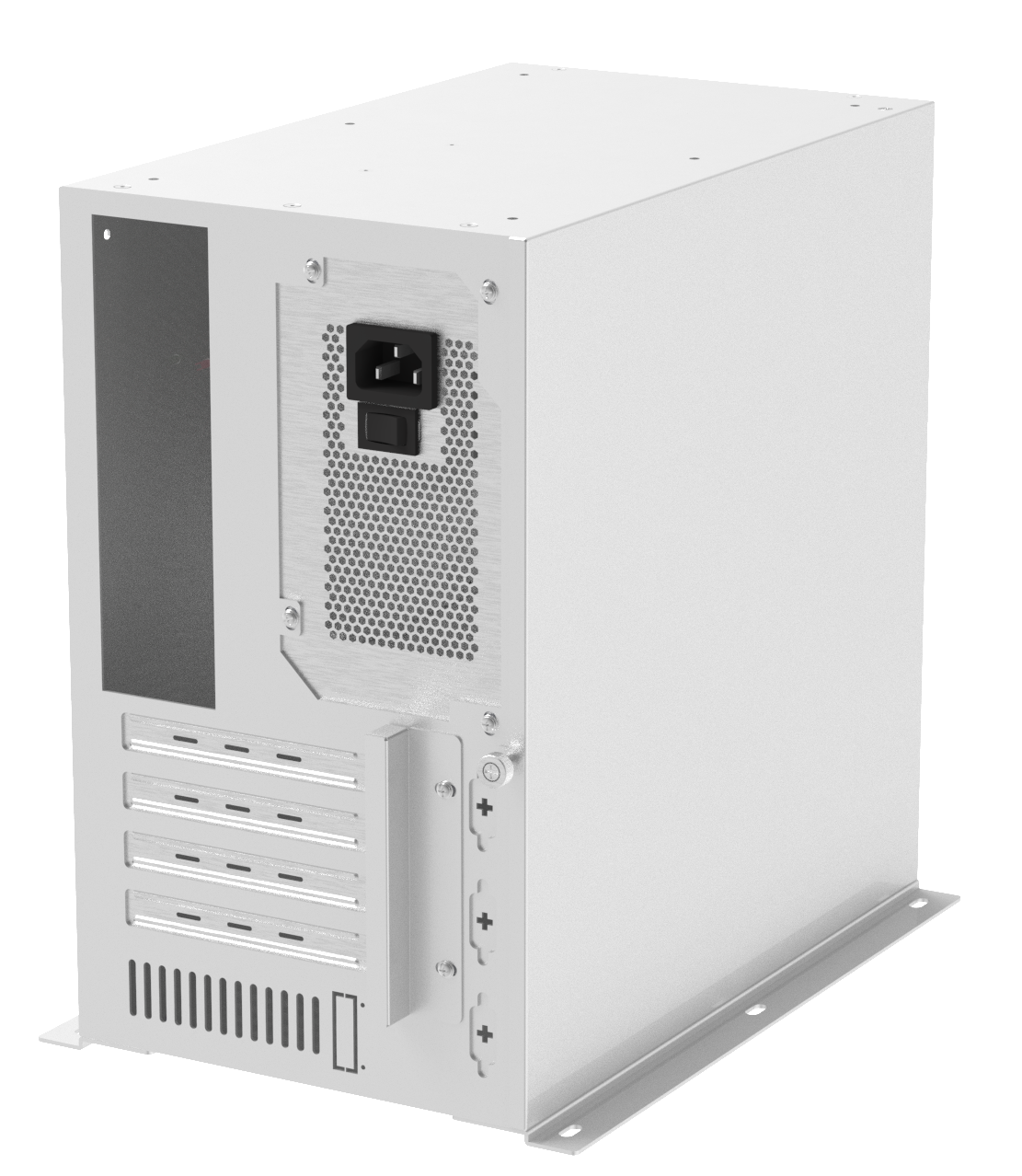

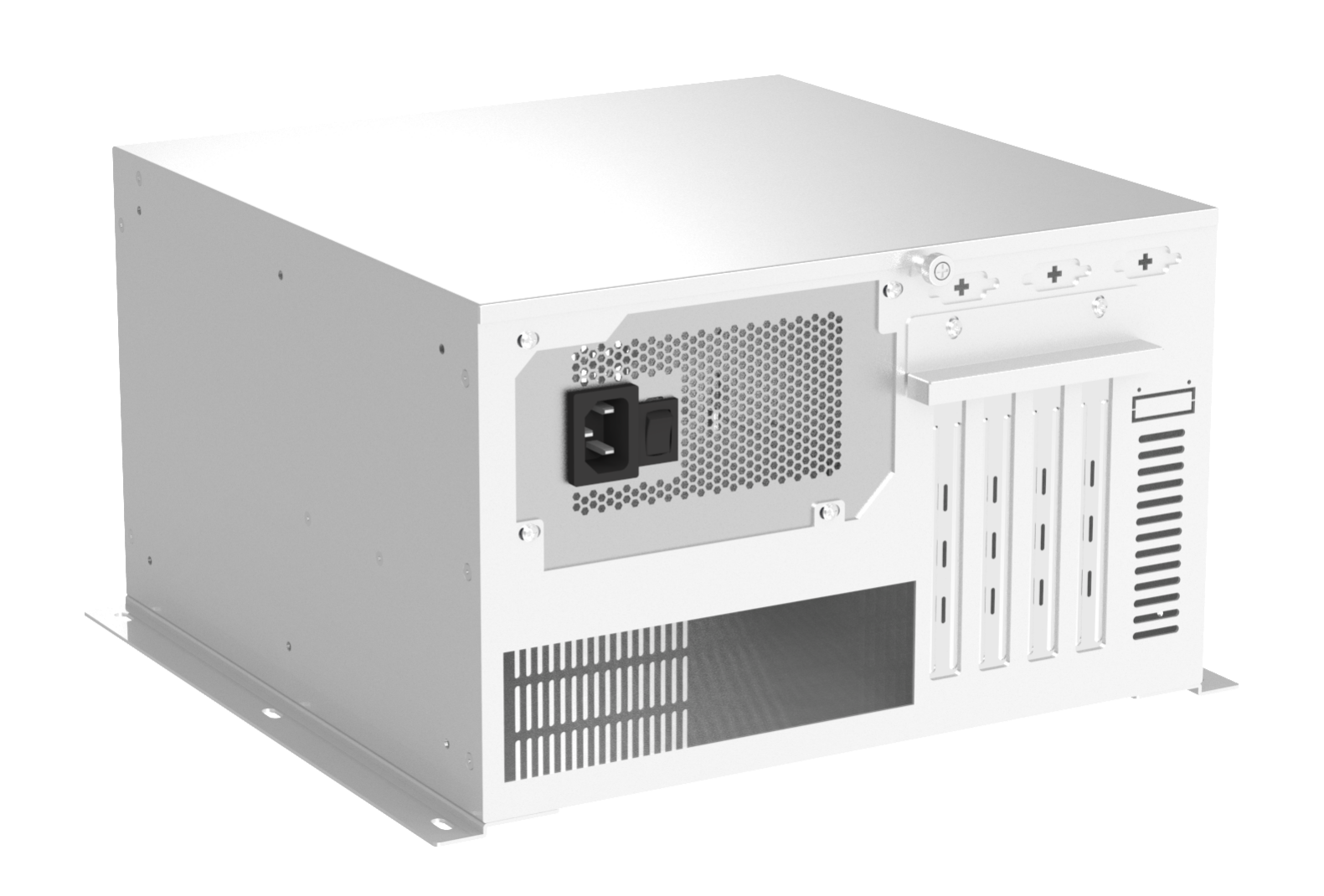

Mechanical |
Enclosure Material | SGCC |
| ? | Dimensions | 290mm(L) * 290mm(W) * 174mm(H) |
| ? | Mounting | Wall mounted, Desktop |
|
Environment |
Heat Dissipation System | PWM fan cooling |
| ? | Operating Temperature | 0 ~ 50℃ |
| ? | Storage Temperature | -20 ~ 70℃ |
| ? | Relative Humidity | 10 to 90% RH (non-condensing) |
-
