產品描述

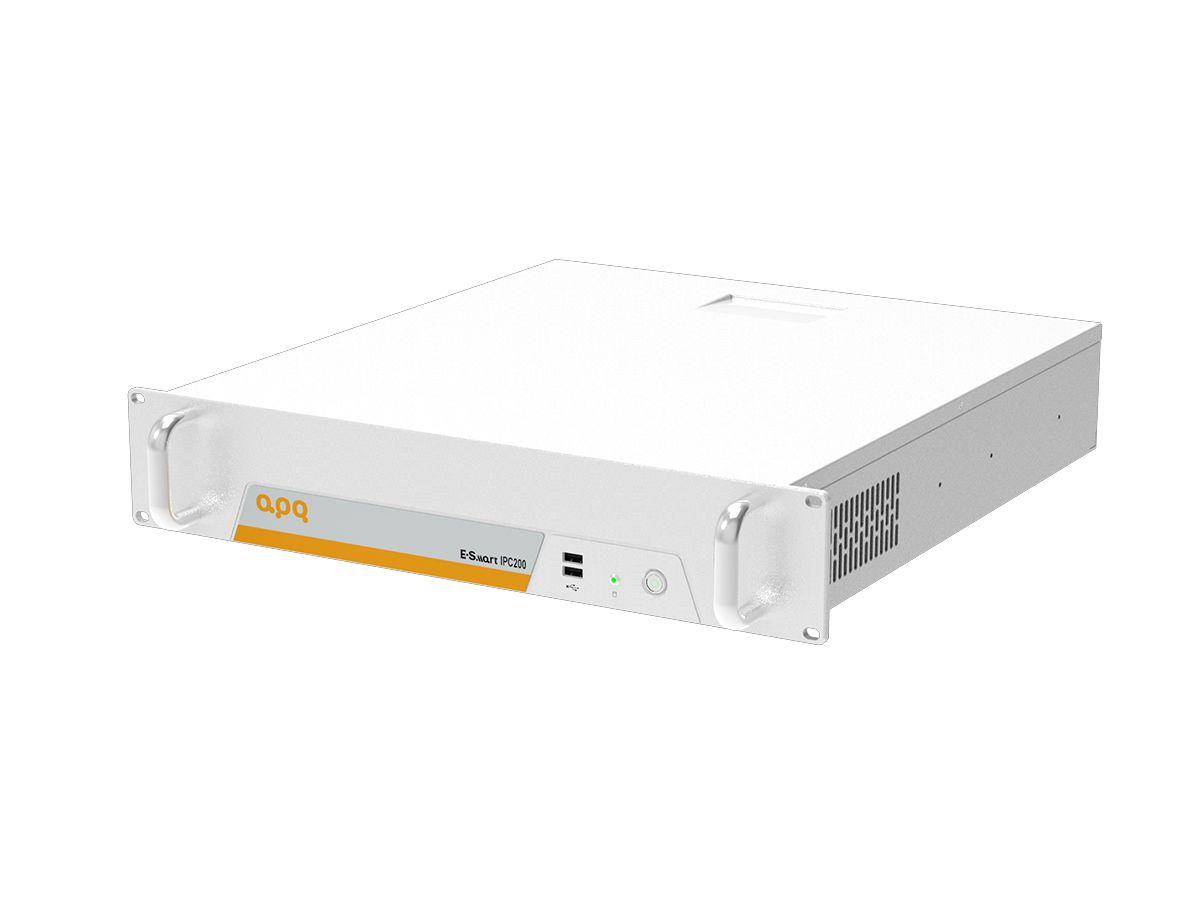

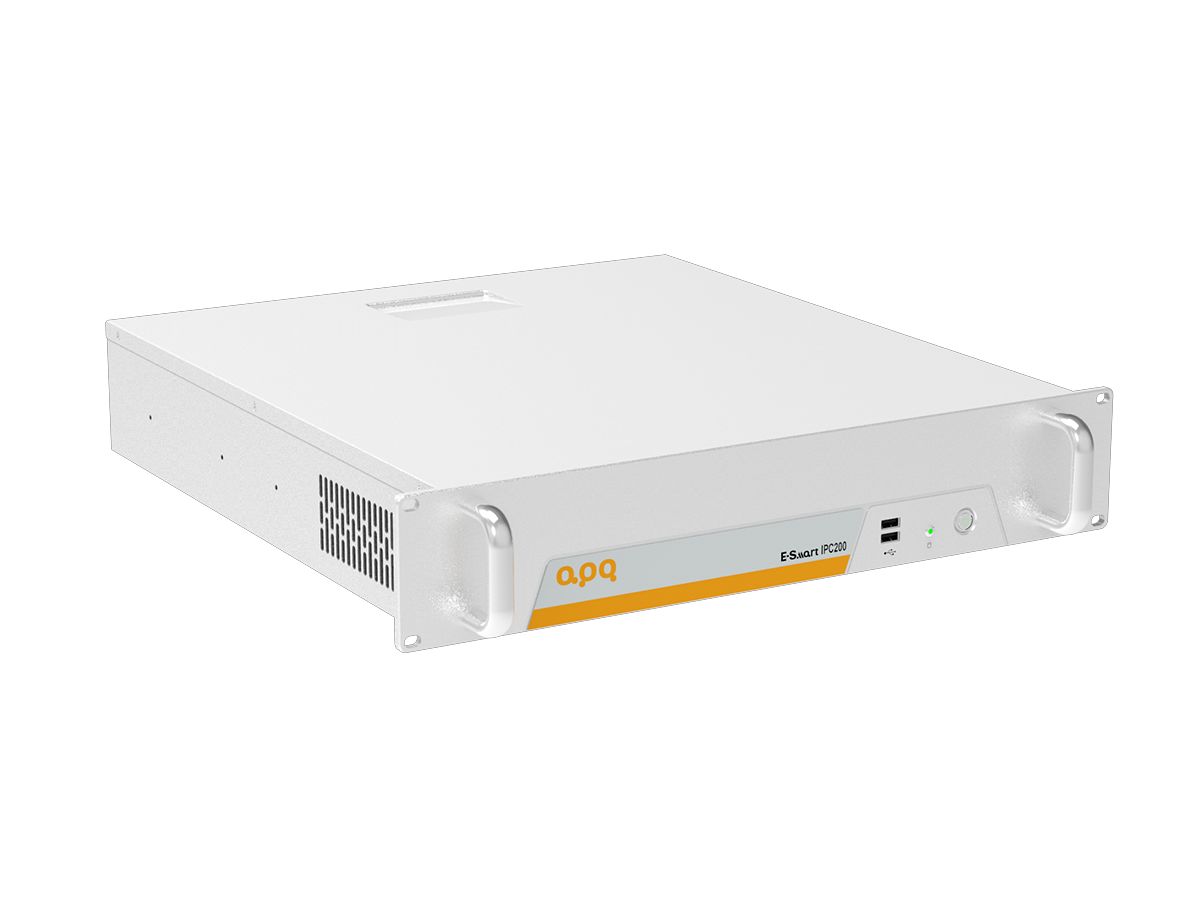

阿普奇2U上架式工控機IPC200-Q670是一款卓越的工業級計算機，它融合了強大的處理器支持、標準化機箱設計、靈活的主板與電源配置、多槽位半高卡擴展能力、人性化維護特性以及豐富的存儲選項。
該產品支持Intel? 12/13th Generation Core/Pentium/Celeron Desktop CPU，確保出色的計算性能，滿足各種復雜應用需求。其采用全套模具成型的19英寸2U上架式機箱，符合行業標準，方便集成到各種工業環境中。此外，IPC200-Q670支持標準ATX主板和標準2U電源，確保了系統的穩定性和可靠性。擴展性方面，它最多支持7槽位半高卡擴展，適應多行業應用需求，如數據采集、視頻監控等。同時，人性化的設計使得機箱前置系統風扇免工具維護，降低了維護難度。在存儲方面，IPC200-Q670提供了最多4個3.5英寸抗震抗沖擊硬盤位，前面板還配備了USB接口、開關機按鈕以及電源和存儲狀態顯示，使得系統維護更加便捷。這些特點共同使得阿普奇2U上架式工控機IPC200-Q670成為工業應用領域的理想選擇。
|
Model |
IPC200-Q670 |
|
|
Processor System |
CPU | Support Intel??12/13th Generation Core / Pentium/ Celeron Desktop CPU |
| TDP | 125W | |
| Socket | LGA1700 | |
| Chipset | Q670 | |
| BIOS | AMI 256 Mbit SPI | |
|
Memory |
Socket | 4 * Non-ECC U-DIMM Slot, Dual Channel DDR4 up to 3200MHz |
| Capacity | 128GB, Single Max. 32GB | |
|
Graphics |
Controller | Intel? UHD Graphics |
|
Ethernet |
Controller | 1 * Intel i225-V/LM 2.5GbE LAN Chip (10/100/1000/2500 Mbps, RJ45) |
| 1 * Intel i219-LM/V GbE LAN Chip (10/100/1000 Mbps, RJ45) | ||
|
Storage |
SATA | 4 * SATA3.0 7P Connector, Support RAID 0, 1, 5, 10 |
| M.2 | 1 * M.2 Key-M (PCIe x4 Gen 4 + SATA3.0, NVMe/SATA SSD Auto Detect, 2242/2260/2280) | |
|
Expansion Slots |
PCIe | 2 * PCIe x16 slot (Gen 5, x16 /NA signal or Gen 4, x8 /x8 signal) |
| 1 * PCIe x8 slot (Gen 4, x4 signal) | ||
| 2 * PCIe x4 slot (Gen 4, x4 signal) | ||
| 1 * PCIe x4 slot (Gen 3, x4 signal) | ||
| PCI | 1 * PCI slot | |
| Mini PCIe | 1 * Mini PCIe (PCIe x1 Gen 3 + USB 2.0, with 1 * SIM Card) | |
| M.2 | 1 * M.2 Key-B (USB3.2 Gen 1x1 (co-lay with usb header, default), with 1 * SIM Card, 3042/3052) | |
|
Front I/O |
Ethernet | 2 * RJ45 |
| USB | 4 * USB3.2 Gen 2x1 (Type-A) | |
| 4 * USB3.2 Gen 1x1 (Type-A) | ||
| Display | 1 * DP1.4: max resolution up to 3840*2160 @ 60Hz | |
| 1 * HDMI2.0: max resolution up to 3840*2160 @ 30Hz | ||
| Audio | 3 * 3.5mm Jack (Line-out + Line-in + MIC) | |
| Serial | 2 * RS232/422/485 (COM1/2, DB9/M, Full Lanes, BIOS Switch) | |
|

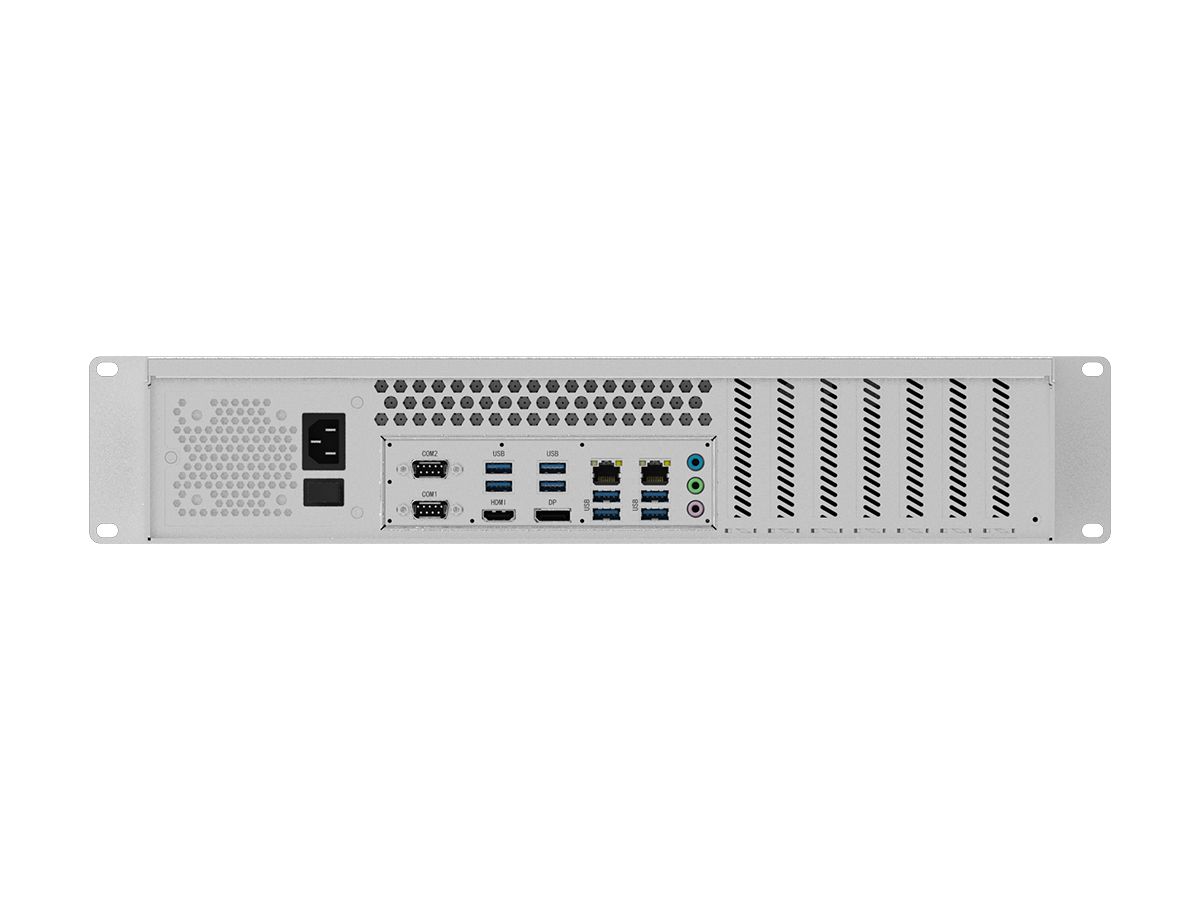

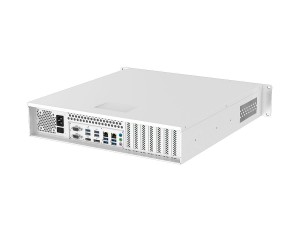

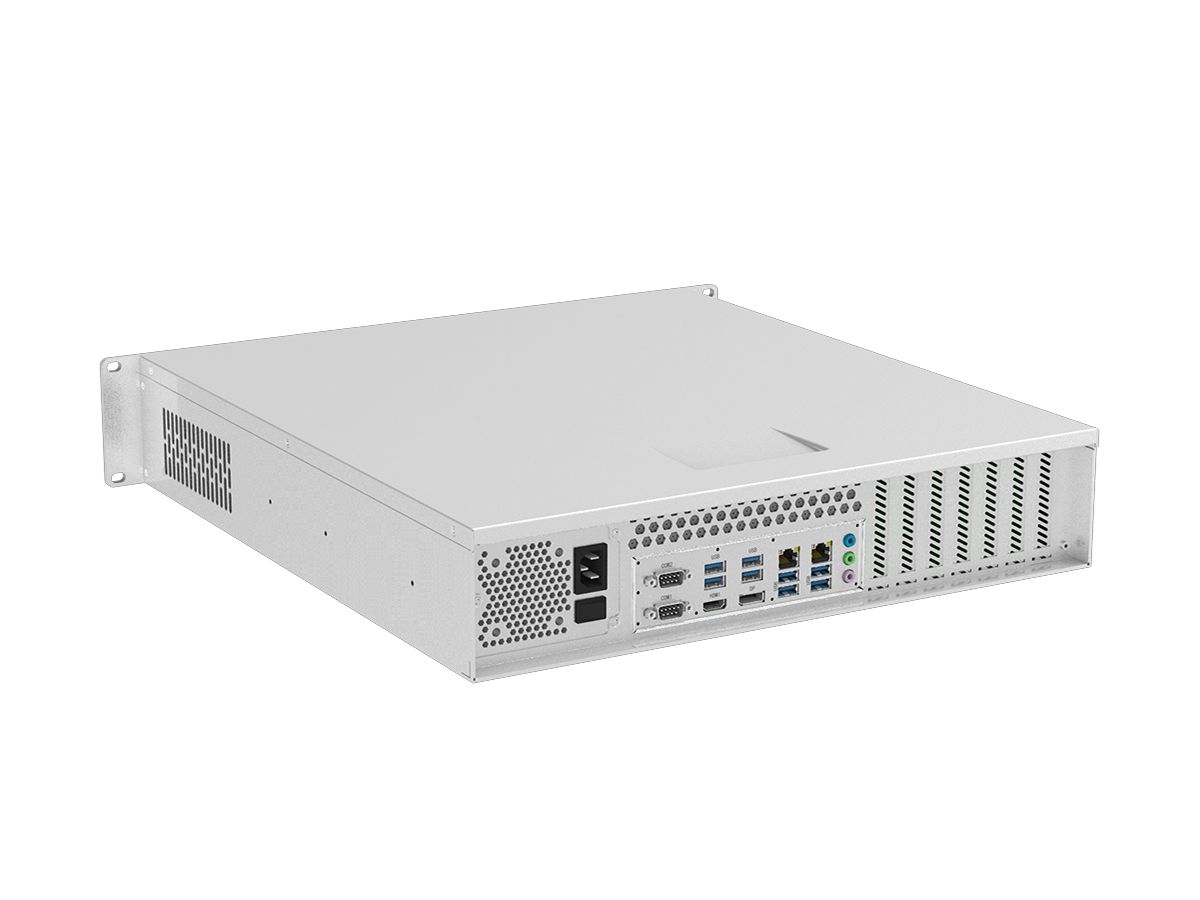

Rear I/O |
USB | 2 * USB2.0 (Type-A) |
| Button | 1 * Power Button | |
| LED | 1 * Power status LED | |
| 1 * Hard drive status LED | ||
|
Internal I/O |
USB | 1 * USB3.2 Gen 1x1 (Vertical TYEP-A) |
| 2 * USB2.0 (One of four shares a signal with the M.2 Key-B, optional, Header) | ||
| COM | 4 * RS232 (COM3/4/5/6, Header, Full Lanes) | |
| Display | 1 * VGA: max resolution up to 1920*1200 @ 60Hz (wafer) | |
| 1 * eDP: max resolution up to 1920*1200 @ 60Hz (Header) | ||
| Audio | 1 * Front Audio (Line-Out + MIC, Header) | |
| 1 * Speaker (3W (per channel) into a 4Ω Loads, wafer) | ||
| GPIO | 1 * 16 bits DIO (8DI and 8DO, wafer) | |
| SATA | 4 * SATA 7P Connector | |
| LPT | 1 * LPT (Header) | |
| PS/2 | 1 * PS/2 (wafer) | |
| SMBus | 1 * SMBus (wafer) | |
| FAN | 2 * SYS FAN (Header) | |
| 1 * CPU FAN (Header) | ||
|
Power Supply |
Type | 2U FLEX |
| Power Input Voltage | AC power supply, voltage and frequency shall be based on the 2U power supply provided | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | Windows 10/11 |
| Linux | Linux | |
|
Watchdog |
Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
|
Mechanical |
Enclosure Material | SGCC+AL6061 |
| Dimensions | 482.6mm(L) * 475.7mm(W) * 88.1mm(H) | |
| Mounting | Rack-mounted/Desktop | |
|
Environment |
Operating Temperature | 0 ~ 50℃ |
| Storage Temperature | -20 ~ 70℃ | |
| Relative Humidity | 10 to 95% RH (non-condensing) | |
-
