產品描述
阿普奇嵌入式工控機E5M系列是一款專為工業自動化和邊緣計算打造的工業計算機。具備強大的性能和豐富的接口。采用Intel Celeron J1900處理器，高效能且低功耗，確保在各種工業環境下穩定運行。雙千兆網卡提供高速穩定的網絡連接，滿足大數據傳輸需求。2個板載顯示接口方便實時監控和數據顯示。此外，E5M系列還擁有6個COM接口，支持兩路隔離RS485，可與多種外部設備進行通信。APQ MXM COM/GPIO模塊擴展功能可根據具體應用需求進行定制配置。同時，該系列支持WiFi/4G無線擴展，方便實現無線連接和控制。12~28V直流寬壓電源設計，適應不同電源環境，確保設備在各種工作條件下都能穩定運行。總之，阿普奇E5M系列嵌入式工控機憑借出色的性能和豐富的接口，為工業自動化和邊緣計算提供了強大支持，滿足各種復雜應用場景的需求。
|
Model |
E5M |
|
|
?Processor System |
CPU | Intel??Celeron??Processor J1900, FCBGA1170 |
| TDP | 10W | |
| Chipset | SOC | |
| BIOS | AMI UEFI BIOS | |
|
Memory |
Socket | 1 * DDR3L-1333MHz SO-DIMM Slot |
| Max Capacity | 8GB | |
|
Graphics |
Controller | Intel??HD Graphics |
|
Ethernet |
Controller | 2 * Intel??i210-AT (10/100/1000 Mbps, RJ45) |
|
Storage |
SATA | 1 * SATA2.0 Connector (2.5-inch hard disk with 15 + 7pin) |
| M.2 | 1 * M.2 Key-M Slot (support SATA SSD, 2280) | |
|
Expansion Slots |
MXM/aDoor | 1 * MXM Slot (LPC + GPIO, support COM/GPIO MXM card) |
| Mini PCIe | 1 * Mini PCIe Slot (PCIe2.0 + USB2.0, with 1 * Nano SIM Card) | |
|

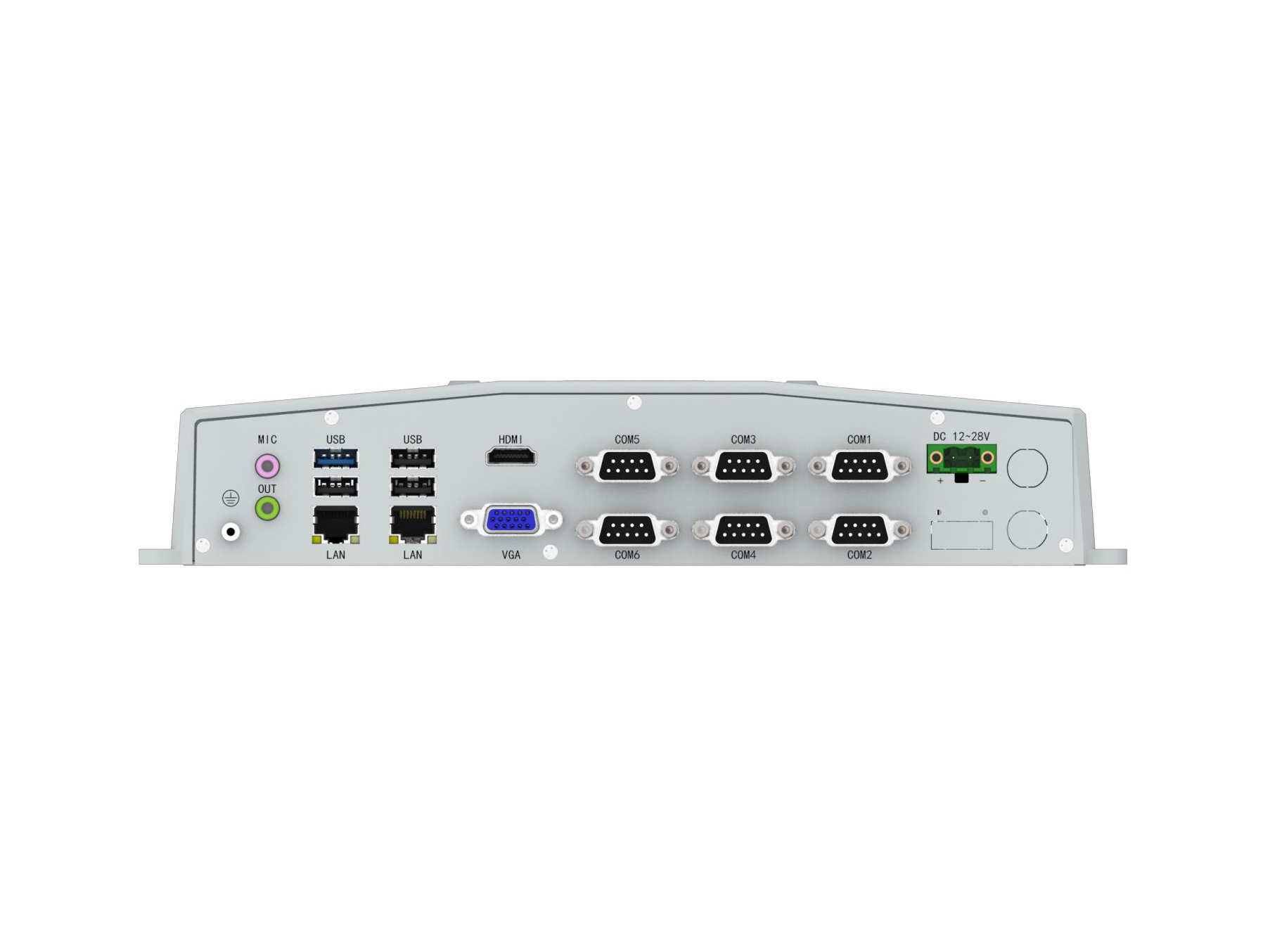

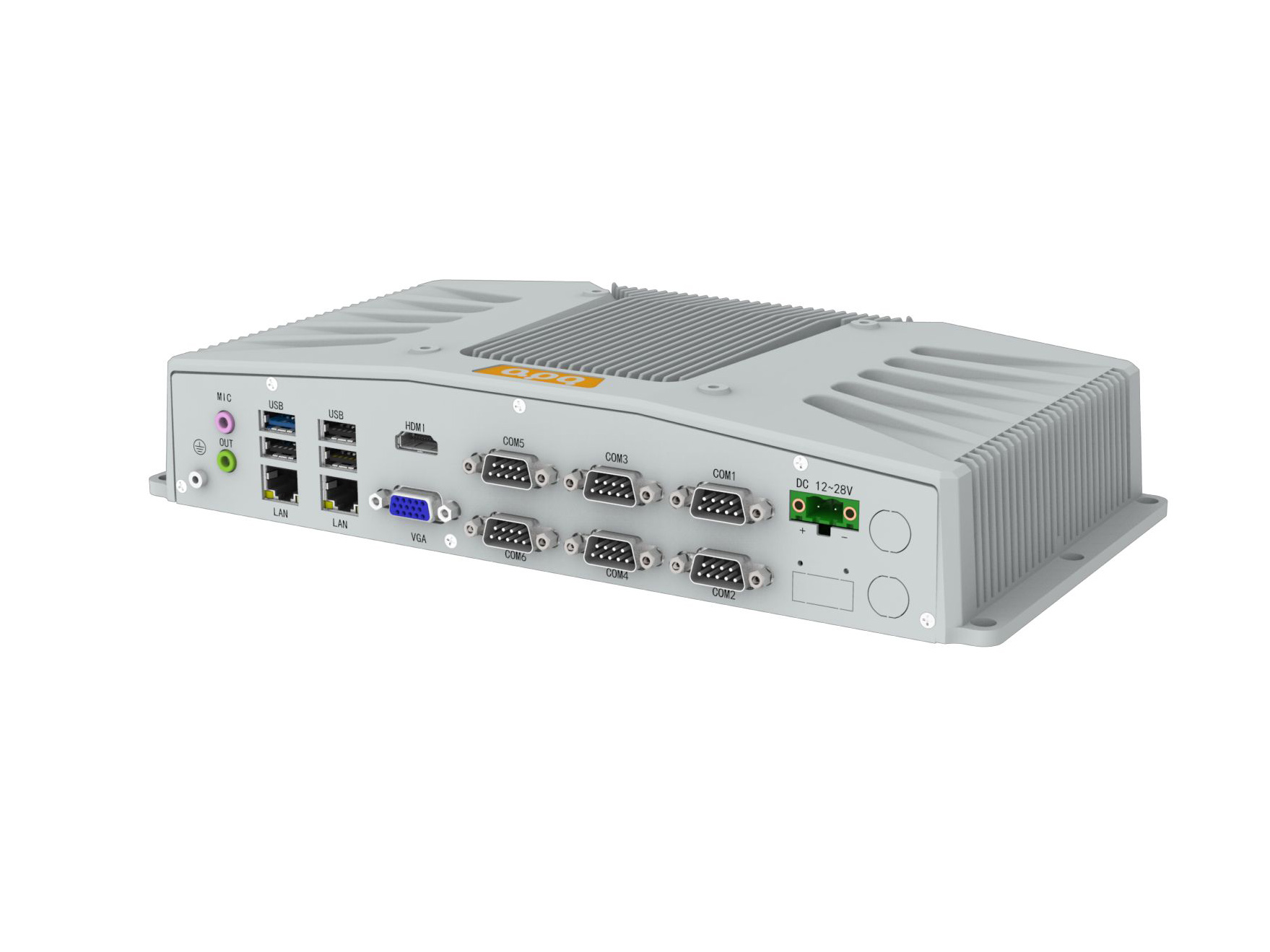

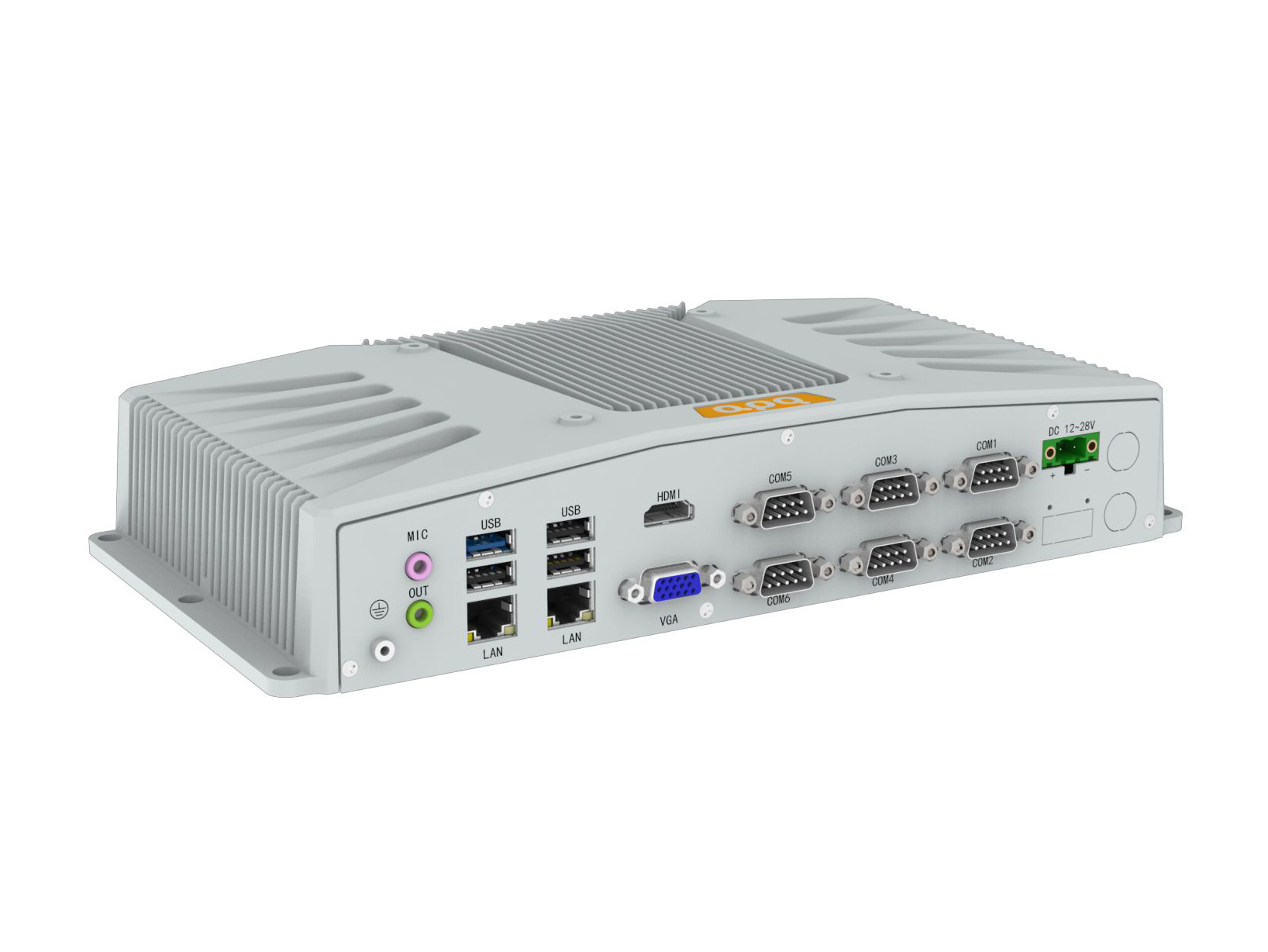

Front I/O |
USB | 1 * USB3.0 (Type-A) 3 * USB2.0 (Type-A) |
| Ethernet | 2 * RJ45 | |
| Display | 1 * VGA: max resolution up to 1920*1280 @ 60Hz 1 * HDMI: max resolution up to 1920*1280 @ 60Hz |
|
| Audio | 1 * 3.5mm Line-out Jack 1 * 3.5mm MIC Jack |
|
| Serial | 2 * RS232/485 (COM1/2, DB9/M) 4 * RS232 (COM3/4/5/6, DB9/M) |
|
| Power | 1 * 2Pin Power Input Connector (12~28V, P= 5.08mm) | |
|

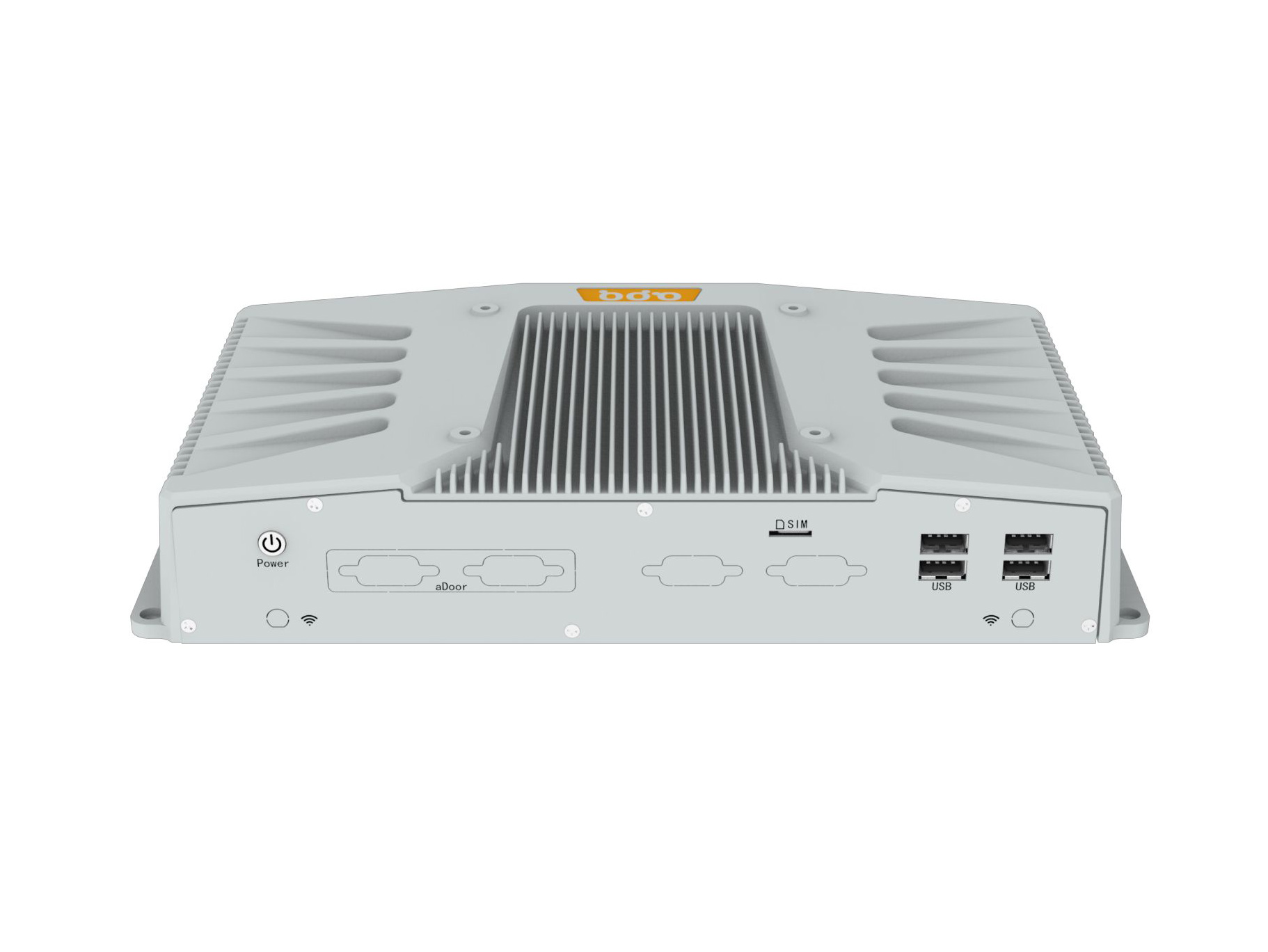

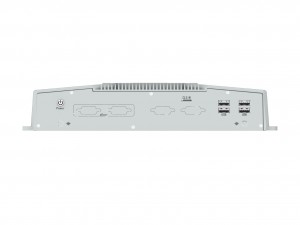

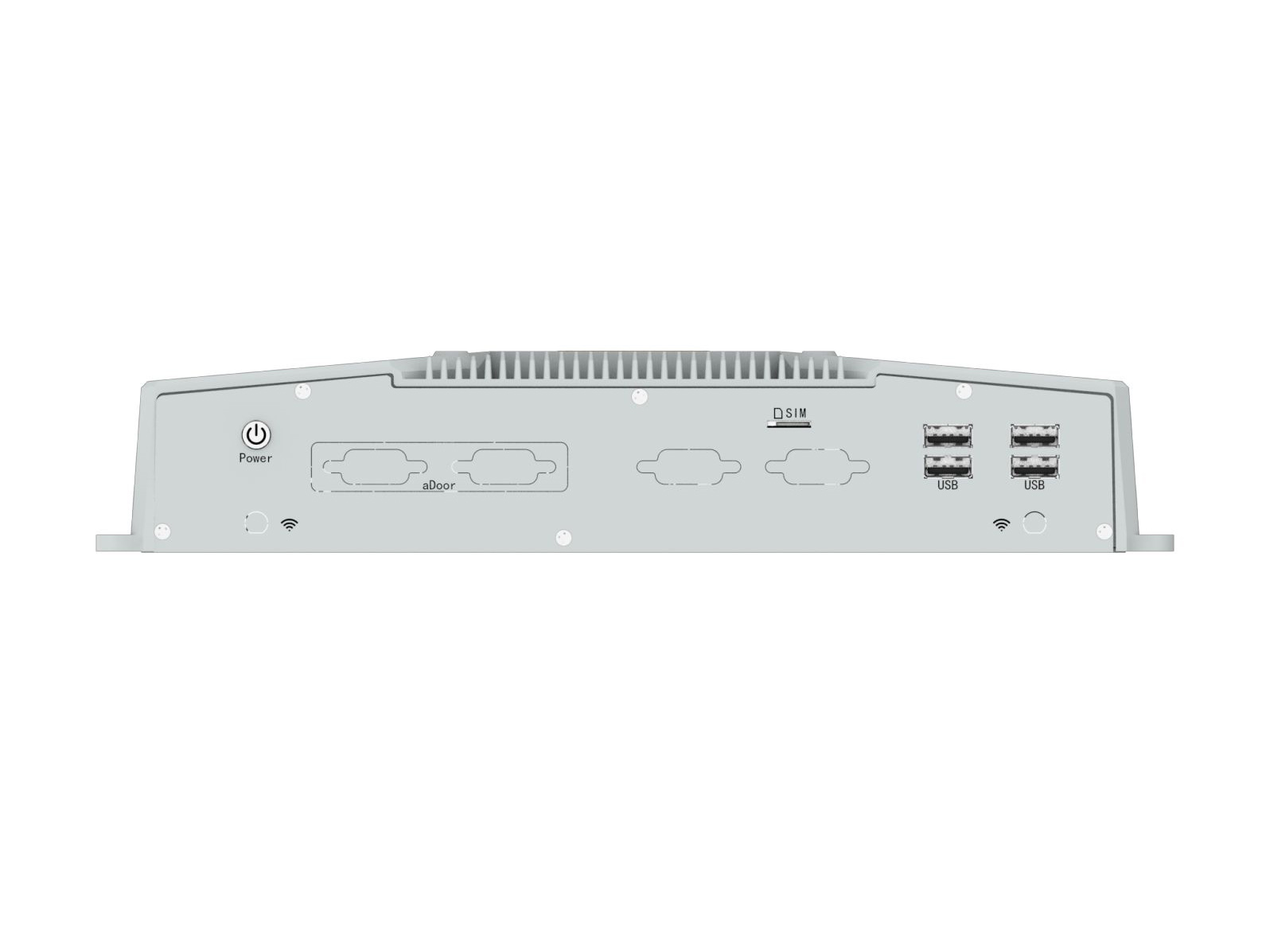

Rear I/O |
USB | 4 * USB2.0 (Type-A) |
| SIM | 1 * Nano SIM Card slot | |
| Button | 1 * Power Button with LED | |
|
Internal I/O |
Front Panel | 1 * TFront Panel (3 * USB2.0 + Front Panel, wafer) 1 * Front Panel (wafer) |
| FAN | 1 * SYS FAN (wafer) | |
| LPC | 1 * LPC (wafer) | |
| PS/2 | 1 * PS/2 (PS/2 keyboard + mouse, wafer) | |
| USB | 2 * USB2.0 (wafer) | |
| Power | 1 * DCIN (Power input, wafer) | |
| Display | 1 * LVDS/eDP (Default LVDS, wafer) | |
| GPIO | 1 * 16bits DIO (8xDI and 8xDO, wafer) | |
| Audio | 1 * Front Audio (Line-Out + MIC, header) 1 * Speaker (2-W (per channel)/8-Ω?Loads, wafer) |
|
|
Power Supply |
Type | DC |
| Power Input Voltage | 12~28VDC | |
| Connector | 1 * 2Pin Power Input Connector (12~28V, P= 5.08mm) | |
| RTC Battery | CR2032 Coin Cell | |
|
OS Support |
Windows | Windows 7/8.1/10 |
| Linux | Linux | |
|
Watchdog |
Output | System Reset |
| Interval | Programmable 1 ~ 255 sec | |
|
Mechanical |
Enclosure Material | Radiator: Aluminum alloy, Box: SGCC |
| Dimensions | 293.5mm(L) * 149.5mm(W) * 54.5mm(H) | |
| Weight | Net: 2.1Kg
Total: 3.1Kg (include packaging) |
|
| Mounting | VESA, Wall mounted, Desk mounting | |
|
Environment |

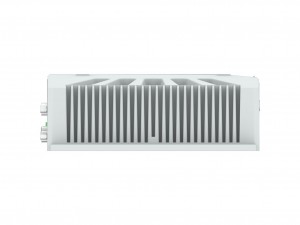

Heat Dissipation System | Passive heat dissipation |
| Operating Temperature | -20~60℃? | |
| Storage Temperature | -40~80℃ | |
| Relative Humidity | 5 to 95% RH (non-condensing) | |
| Vibration During Operation | With SSD: IEC 60068-2-64 (3Grms@5~500Hz, random, 1hr/axis) | |
| Shock During Operation | With SSD: IEC 60068-2-27 (30G, half sine, 11ms) | |
| Certification | CE/FCC, RoHS | |
-
嵌入式工控機/BOX E5M系列
